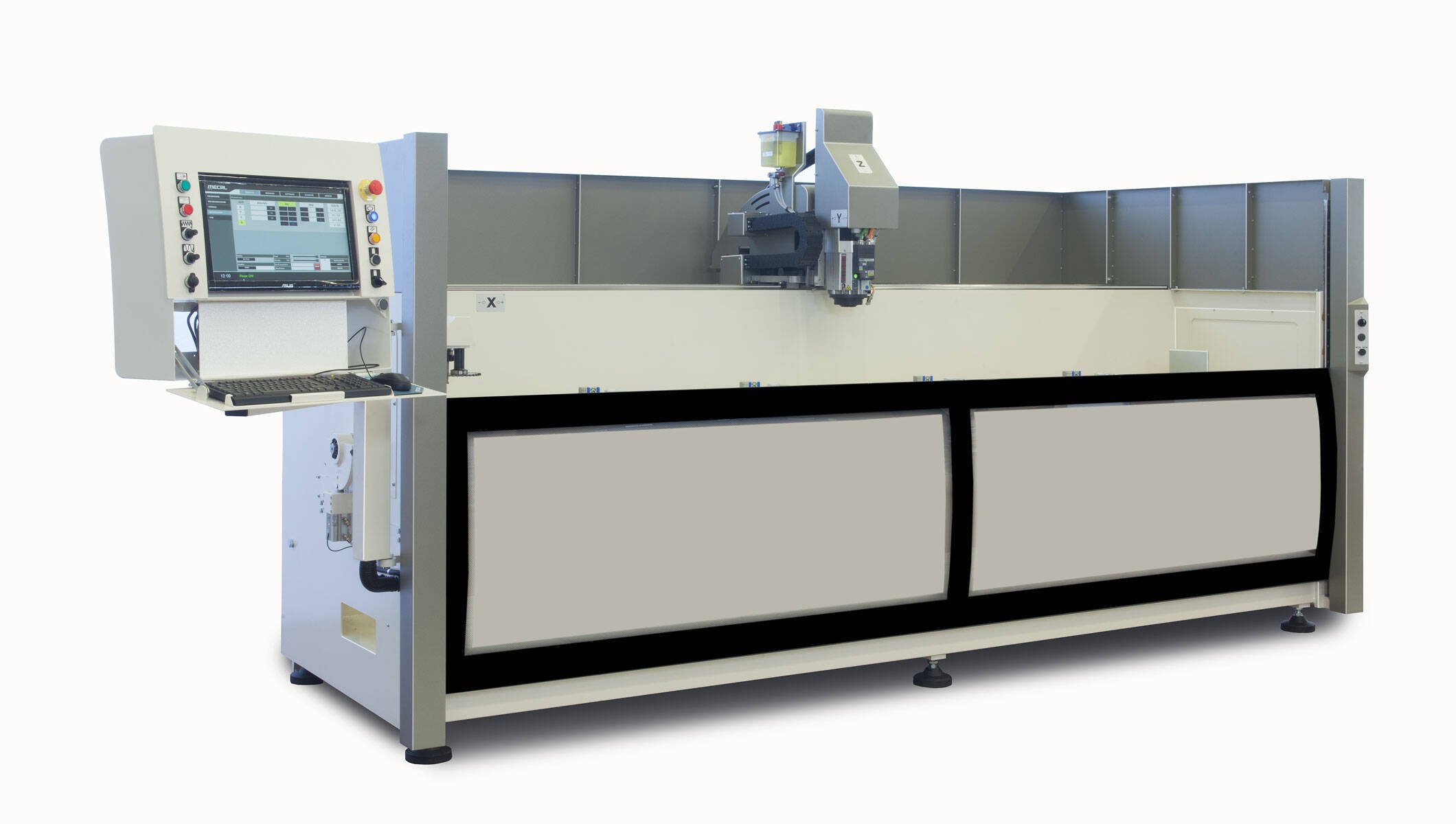

3 axis CNC+ 1 axis pneumatically managed floor-type vertical-spindle machining centre

  • 3 axis (X, Y, Z) controlled by CNC + 1 axis pneumatically managed.
  • Suitable for machining aluminium and PVC profiles.
  • The workpieces are fixed with 4 pneumatic clamps, sliding on the tilting beam; this beam has a ± 90 ° rotation range with pneumatic actuation.
  • Workable section: 200 x 170 mm (YxZ).

Advantages

  • Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.
  • The locking clamps slide on precision guides, with manual positioning supported by a laser indicator managed by CN.

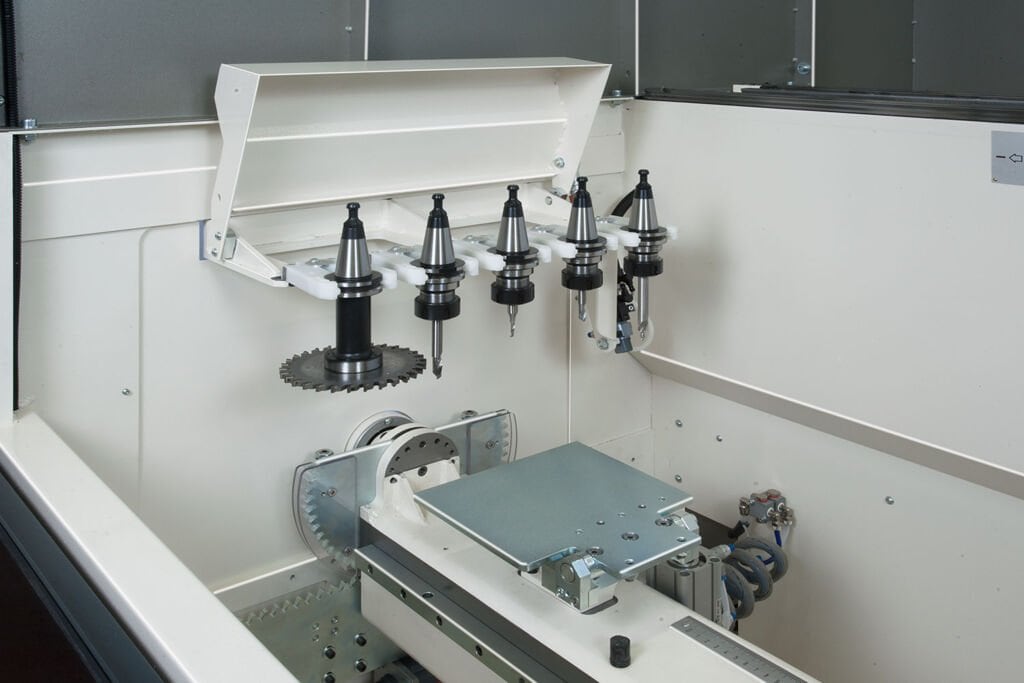

  • 5-position tool magazine on the machine, with automatic tool change.
  • The tools cooling is provided by a centralized system with minimal volume.
  • The axis slide on precision linear guides and transmission through rack-pinion. The positioning is done by brushless motors with absolute encoder, managed by CN with a high-speed digital system.

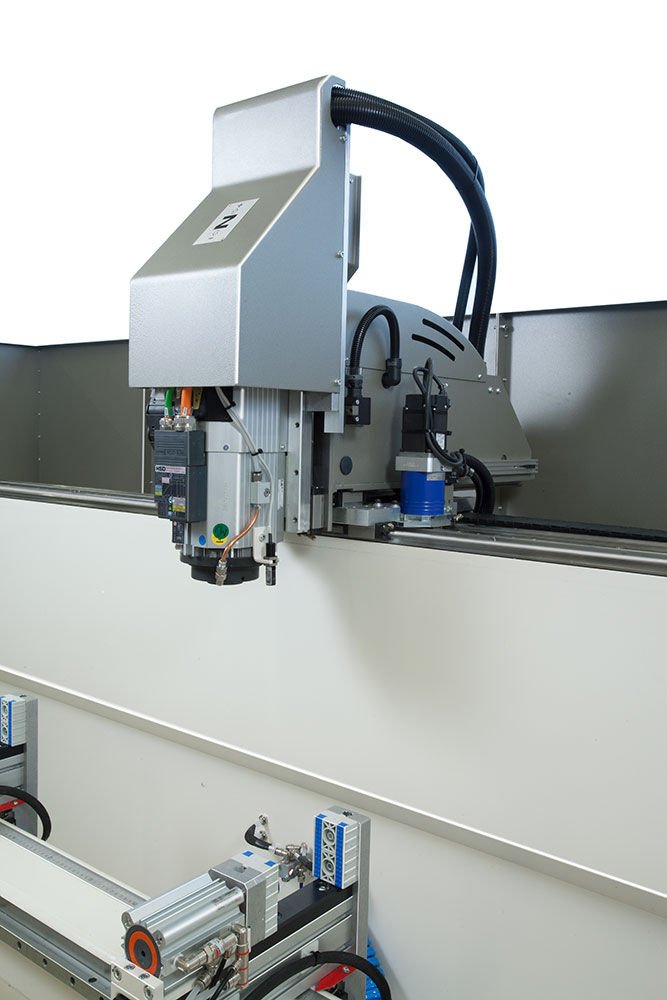

  • The air cooled spindle is arranged for the quick-change tooling.
  • With dedicated accessories can operate on 5 sides of profiles.
  • Milling machining with linear and circular interpolation can be performed on the X, Y and Z axes.

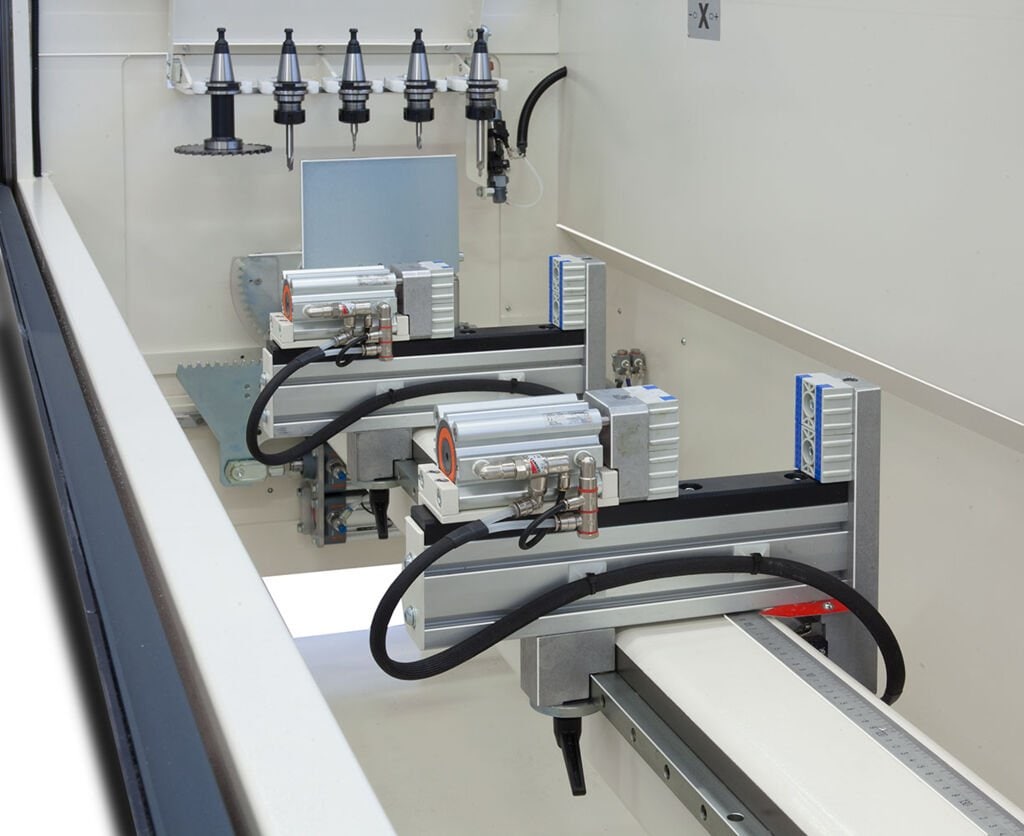

  • 2 retractable reference stops (right and left) with pneumatic control.

Technical data

X- axis stroke mm 3.160
Positioning speed X-axis m/1’ 60
Y-axis stroke mm 360
Positioning speed Y-axis m/1’ 30
Z-axis stroke mm 345
Positioning speed Z-axis m/1’ 30
Electrospindle rated power kW 3,8
Cooling system   Air
Tool holder cone   ISO30
Max rotation speed rpm 20.000
Weight kg ± 1.800
