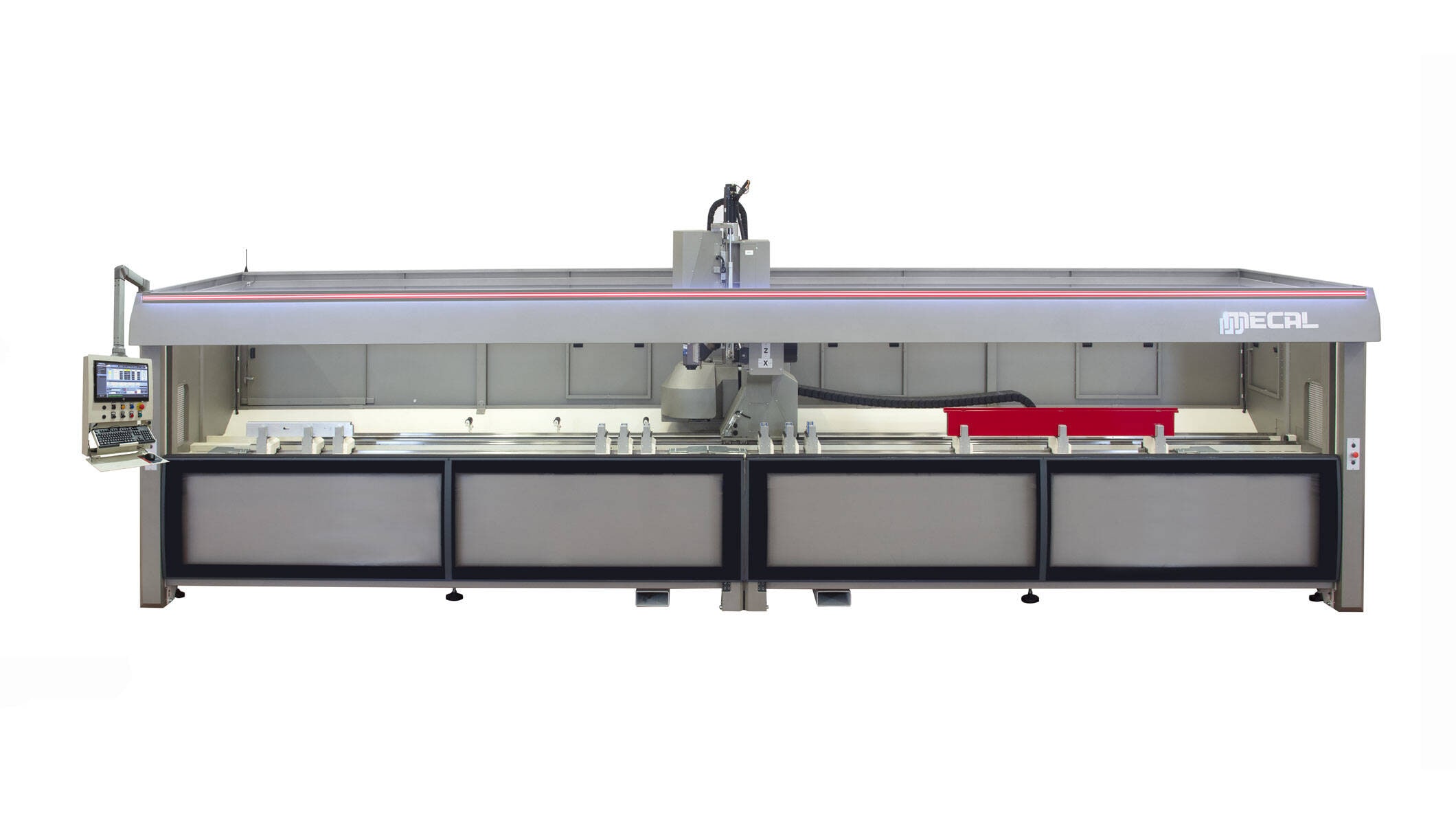

mc 312 taurus
(512) 931-1962
- Enclosed 5 axis CNC machining center

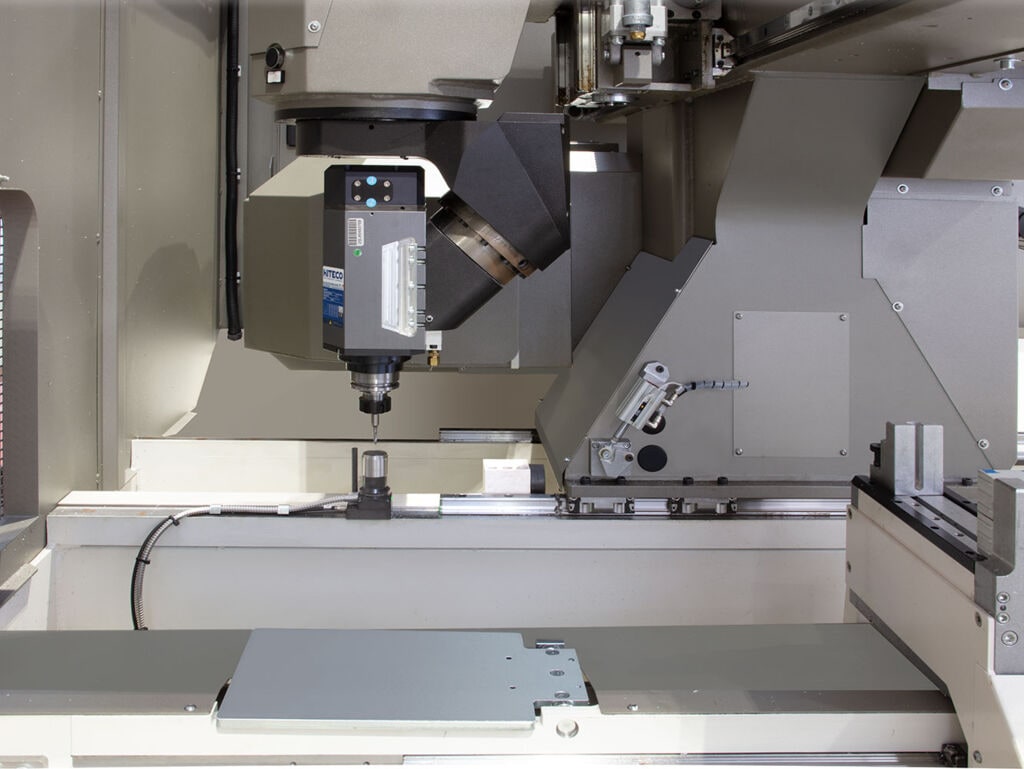

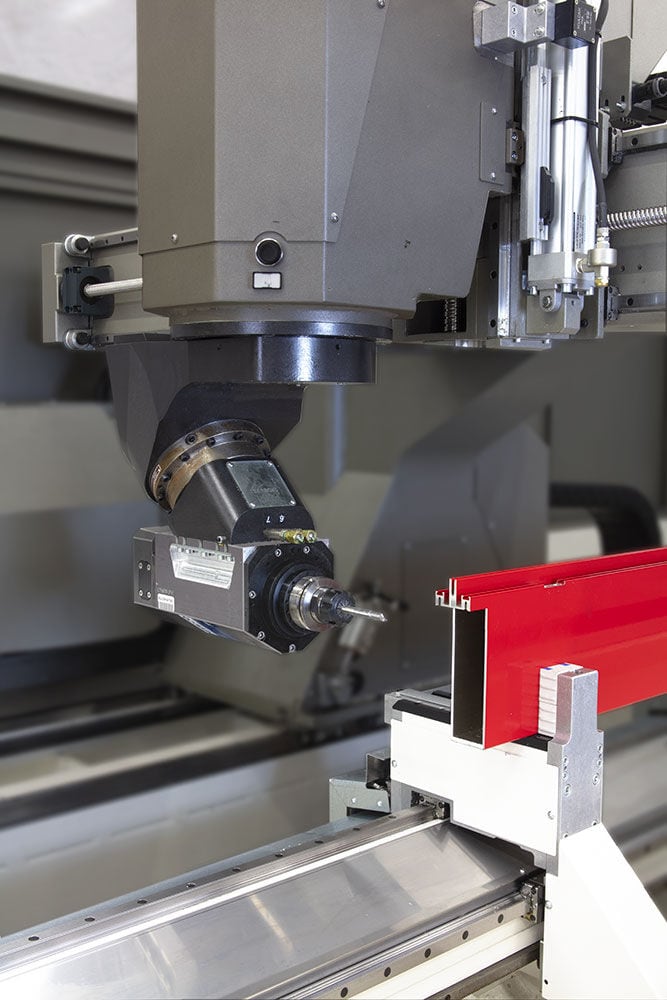

- 10kw spindle HSK-F-63
- Saw blade of max diam 350 mm (13.77″)

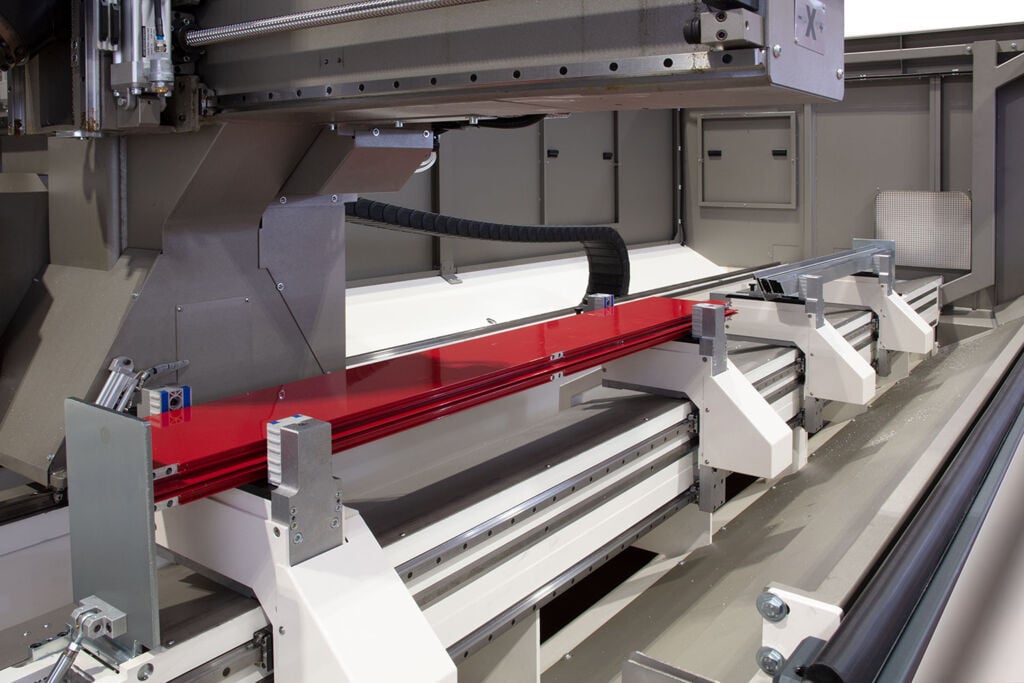

- 8 x Automatic individually motorised vices
- Motorized clamps in MMI or MDT option
- Full CAM-3d software
- Integration with external software
- Centralised 12 tool automatic magazine
- Zero stops at each end to work multiple profiles
- Automatic centralised lubrication system
Advantages
- Ability to work 3 sides and both ends and any intermediate angle. A sawblade can operate along the X axis or across the Y axis in either the horizontal or vertical plane. Mitre cuts are also possible.
- 2 independent rotating tables with 4 zero reference stops offer unbeatable production potential.
- 4 different jobs of appropriate length can be worked in the dual zone mode, or one long job can be worked with the tables synchronised to provide full length loading.
- Designed to be the most advanced and easy to use system currently available.
- All of the basic programming is available with pre-loaded macros which are applied by a simple drag and drop process.
- The graphical 3D presentation is a clear and accurate representation that can be viewed from any angle to check for errors, and it demonstrates the orientation for the workpiece to be correctly loaded.
- 12 position automatic tool magazine is mounted centrally to reduce tool change times to an absolute minimum.

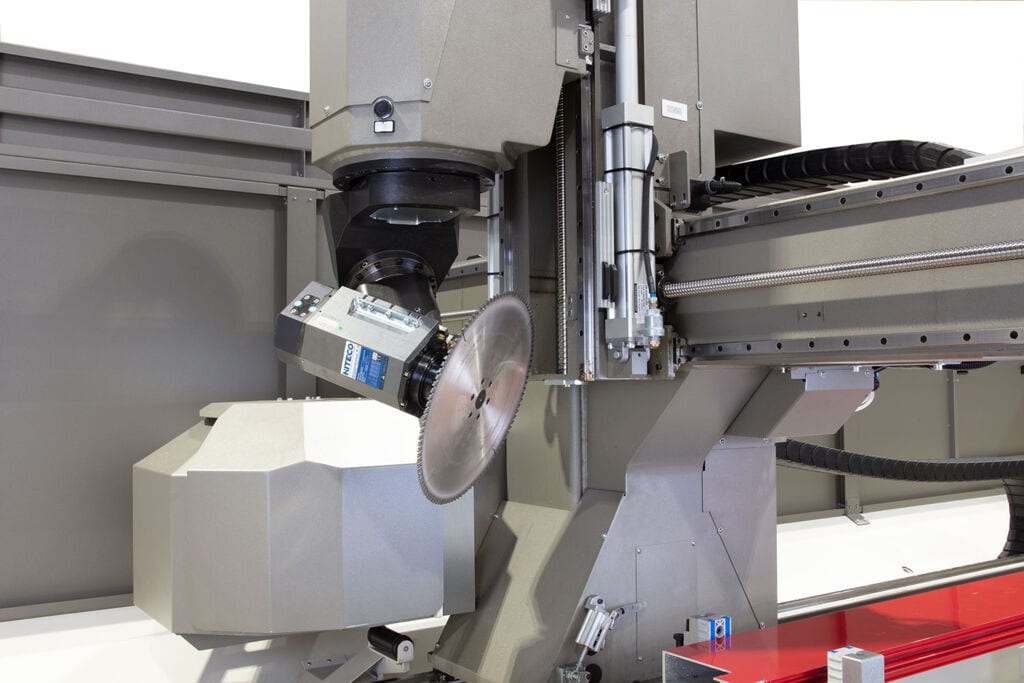

- Equipped with a saw blade max diam 350mm (13.7")
Technical data
| X axis traverse | mm | 7600 |
| X axis positioning speed (max) | m/1’ | 130 |
| Y axis traverse | mm | 1455 |
| Y axis positioning speed (max) | m/1’ | 70 |
| Z axis traverse | mm | 473 |
| Z axis positioning speed (max) | m/1’ | 50 |
| B axis | deg | ± 185° |
| C axis | deg | ± 320° |
| Electrospindle rated power | kW | 8,5 (S1) 10,0 (S6) |
| Cooling system | liquid | |
| Tool holder cone | HSK-63F | |
| Rotation speed (max) | rpm | 24000 |
| Weight | kg | ± 7500 |
