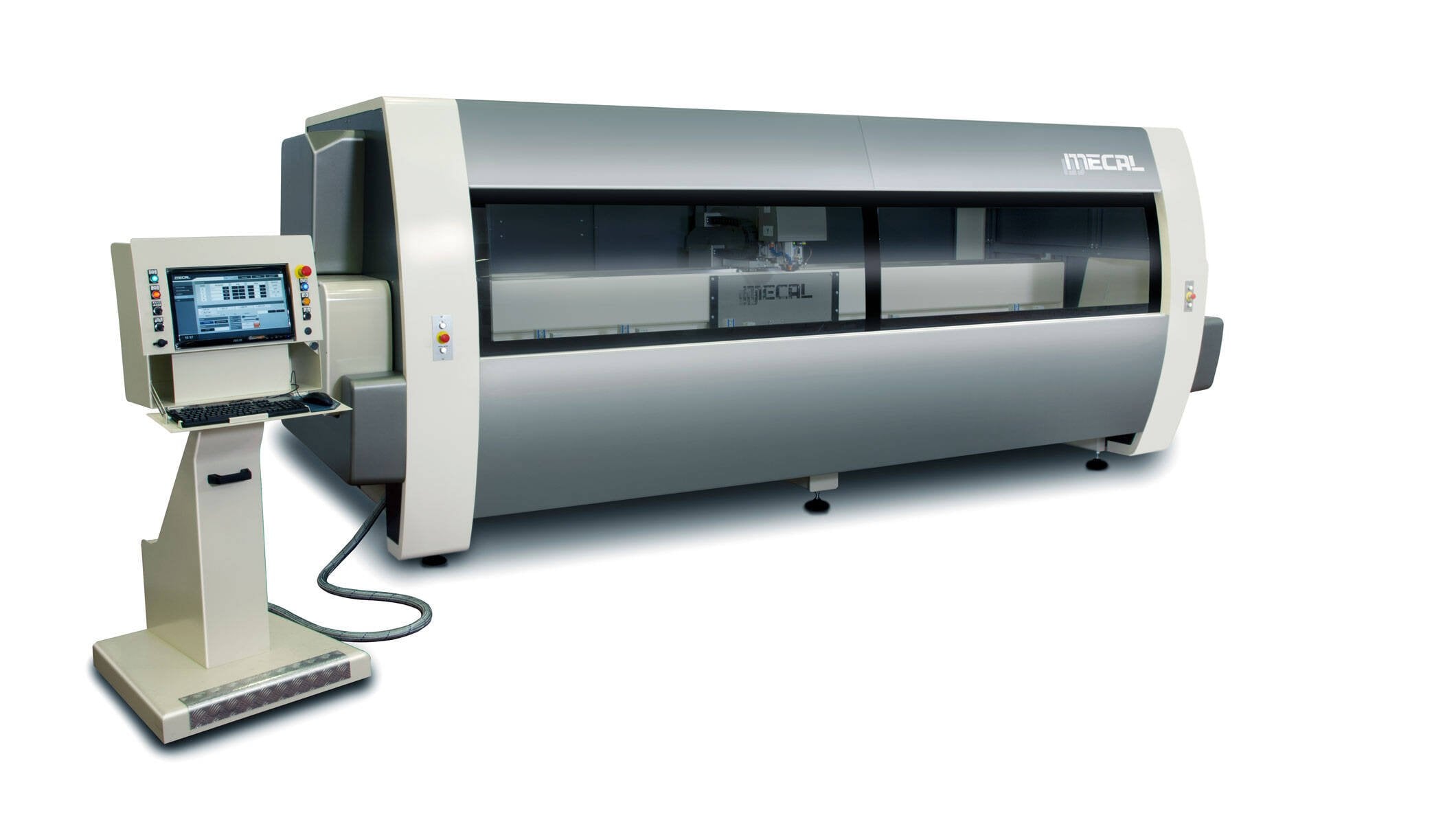

mc 307 falcon tm mmi

Advantages

• Axis speeds up to 150 m/min.
• Compact and innovative design.

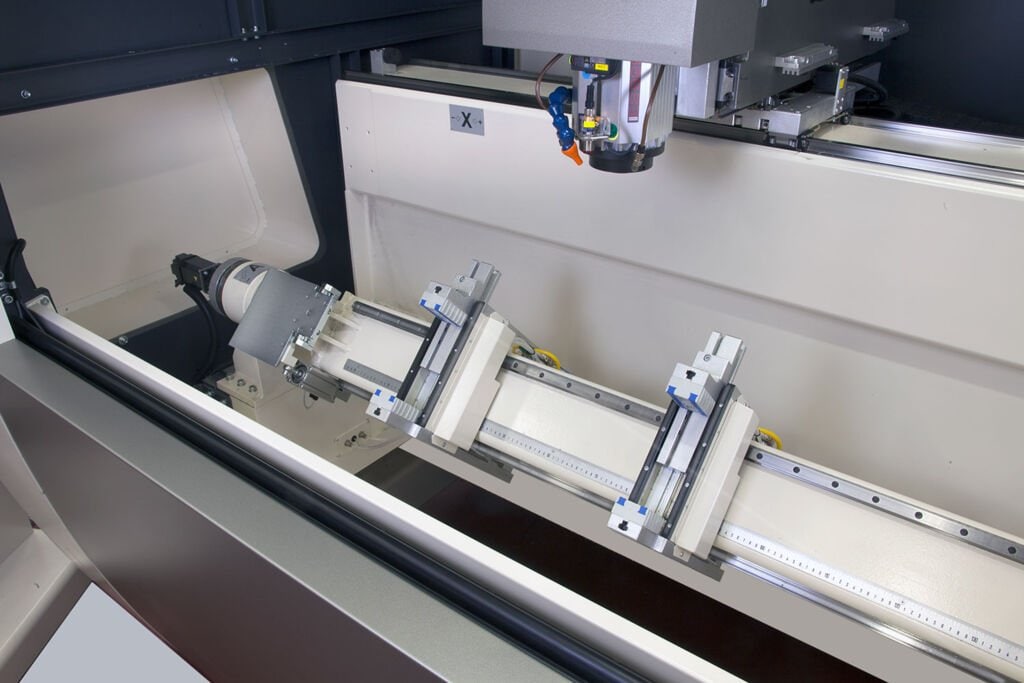

• Simultaneous positioning of the clamps. The independent motorization allows the autonomous positioning of each clamp in an extremely short time.
• The clamps beam can be positioned side by side to the longitudinal axis at any angle within ± 125°.
• Clamps capacity up to 300 mm.
• 2 retractable reference stops (right and left) allow you to load profiles with complementary lengths, even with sections and different machinings.
• The useful stroke for working bars is 4000 mm; for longer pieces, the differentiated machining cycle can be used, up to the double of the useful stroke (8000 mm).
• The electric spindle is suitable for quick tool holder change.
• The change of the tool holder is AUTOMATICALLY managed.

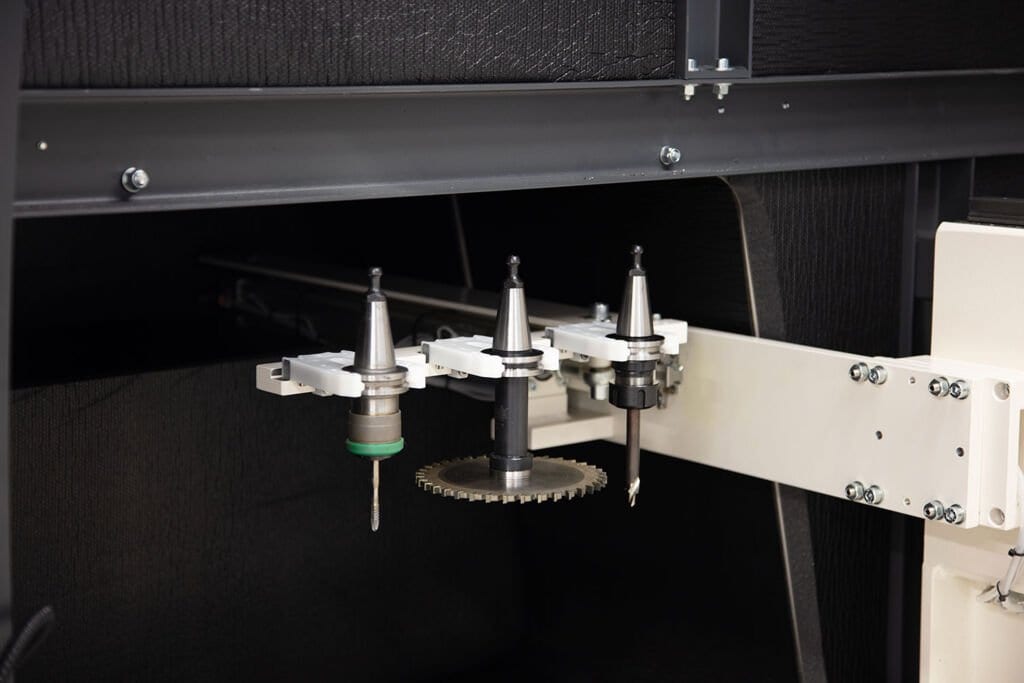

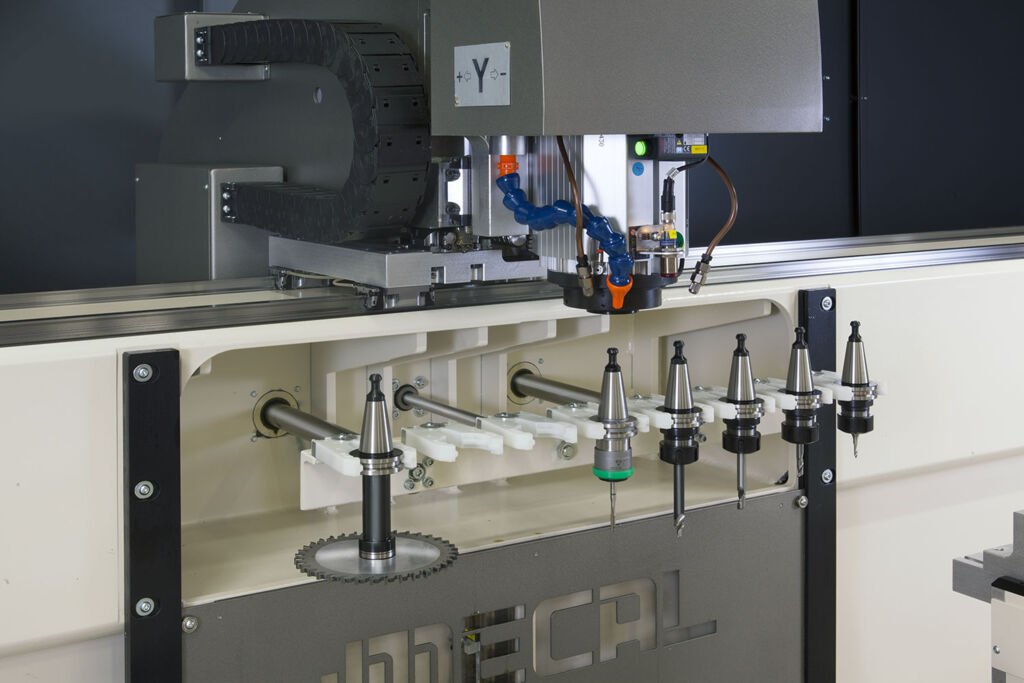

• The 10-position tool magazine is placed in the center of the base, thus reducing the time required for tool change. Additional 3-positions storages on the right and on the left, for a total of 16 tools available.
• The tools cooling is done through a centralized system that optimizes the required minimal lubrication.
• Using a disk cutter, it is possible to work on both sides at the end of the profile (end milling cycle).
• Milling operations can be performed with linear and circular interpolation of the axes X,Y,Z.
• All systems handling axes are lubricated through an automatic centralized system.
• Pre arranged to use a set of chips collector bins.
• Pre arranged for the inclusion of a motorized belt conveyor with PVC belt for evacuation of chips.
