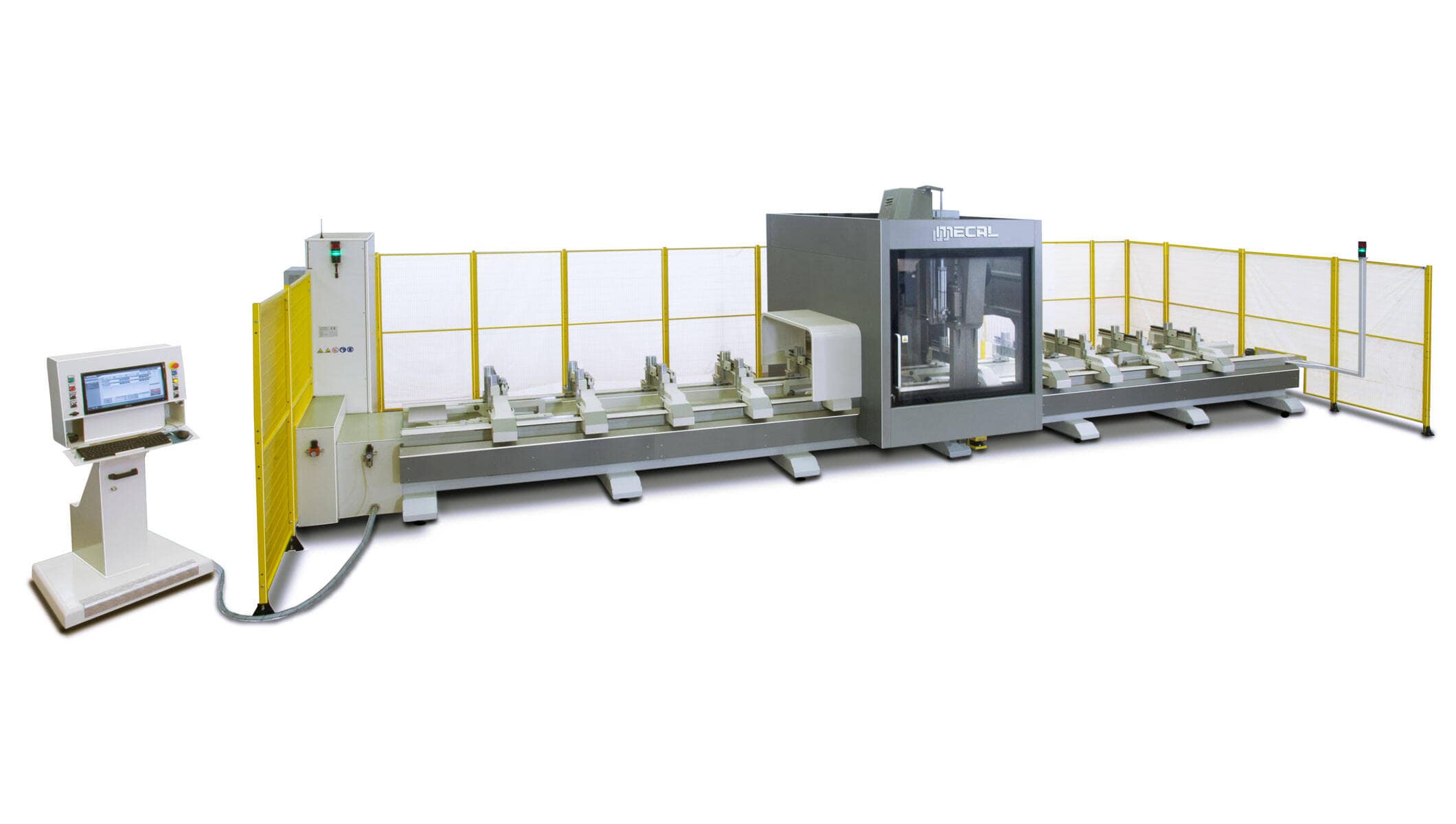

mc 302 geos 5 mdt

Advantages

• The axis slide on precision profile guides and are driven by motors operated with digital systems.
• All slide ways and ball recirculation screws are lubricated through an automatic centralized system.
• Clamp with rapid adjustment.
• The vices slide on precision profile guides and are positioned with independent motorization on each clamp, managed by CNC.
• The independent powered system allows the positioning of each individual clamp unit in a very reduced time. This system allows the automatic repositioning of the clamp during the machining.
• Fully equipped with digital technology. The data communication is via optical fiber, ensuring high transmission speed and a complete absence of interferences caused by external factors (frequency, voltage).
• The longitudinal area of the machine can be used as a single working field or in pendular mode obtaining 2 separate working zones, with loading and unloading of the pieces in masked time. You can machine different pieces inside the 2 working areas.

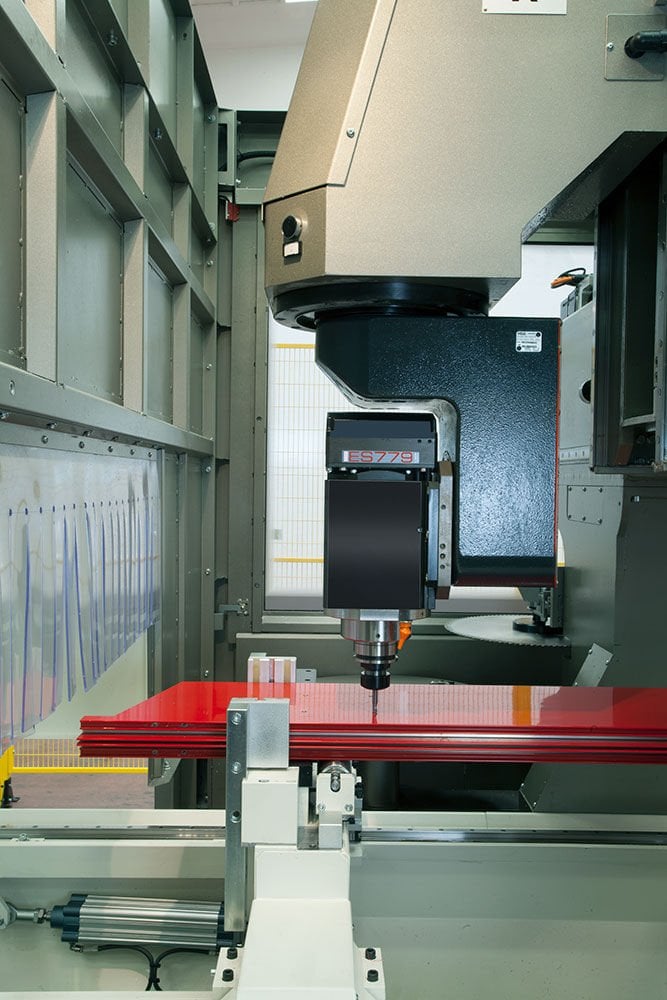

• The electric spindle liquid cooled, with HSK F 63 tool holder and power 12 kW, with encoder, allows the execution of rigid tapping (M20).

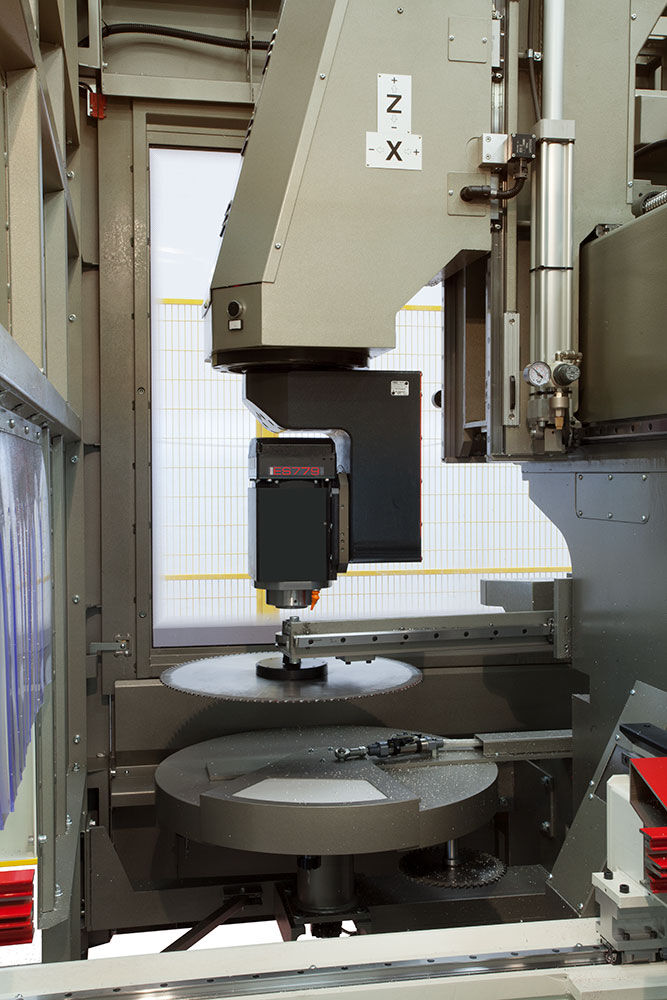

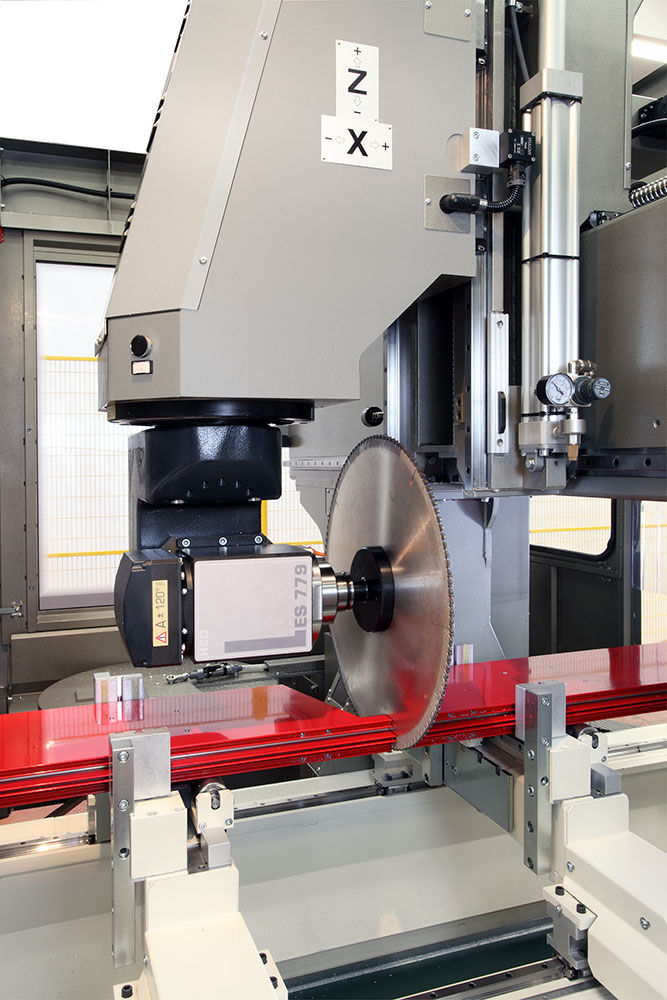

• The rotating tool magazine with 18 positions is located on the carriage of the machine and thus reducing significantly the tool change time. The blade (max Ø 500 mm) is placed on the carriage on an extra tool magazine.
• Milling operations can be performed with linear and circular interpolation of the axes X?Y?Z.
• The strong base formed by tubulars guarantees the fundamental structural rigidity of the machine.
• The tools cooling is realized through a centralised minimal system.

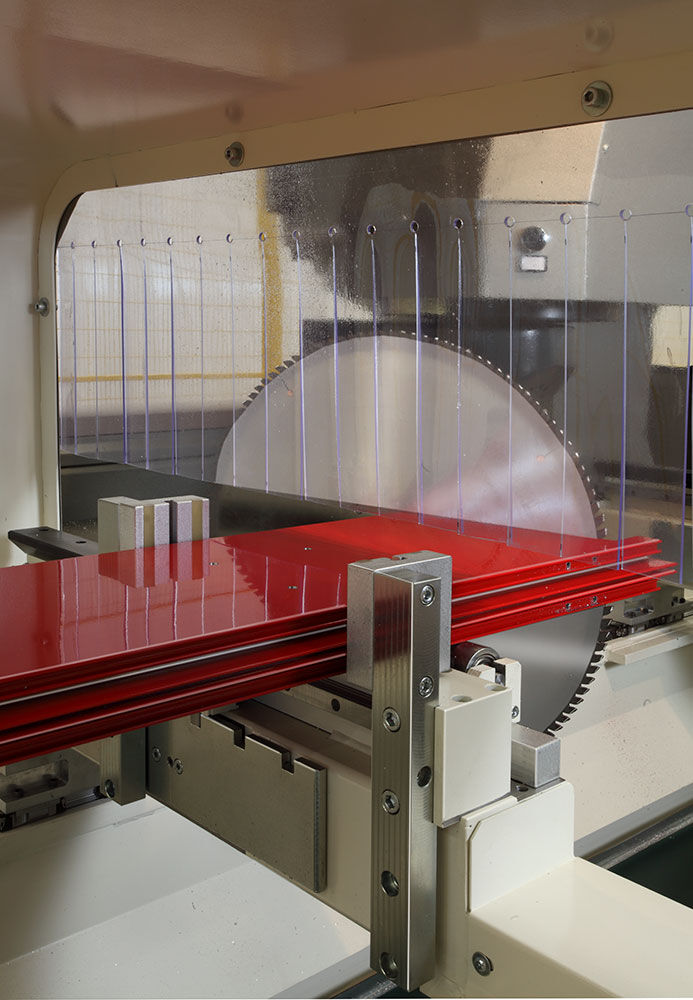

• Equipped with cutting module (MDT), a system to obtain multiple pieces derived from a single profile bar.
• It is expected that each workpiece is held by at least two vices. Once cut, the segment obtained is automatically moved along the longitudinal axis of the machine, up to reach a given position.
• Pre‐arranged for the inclusion of a motorized belt conveyor for evacuation of chips.
