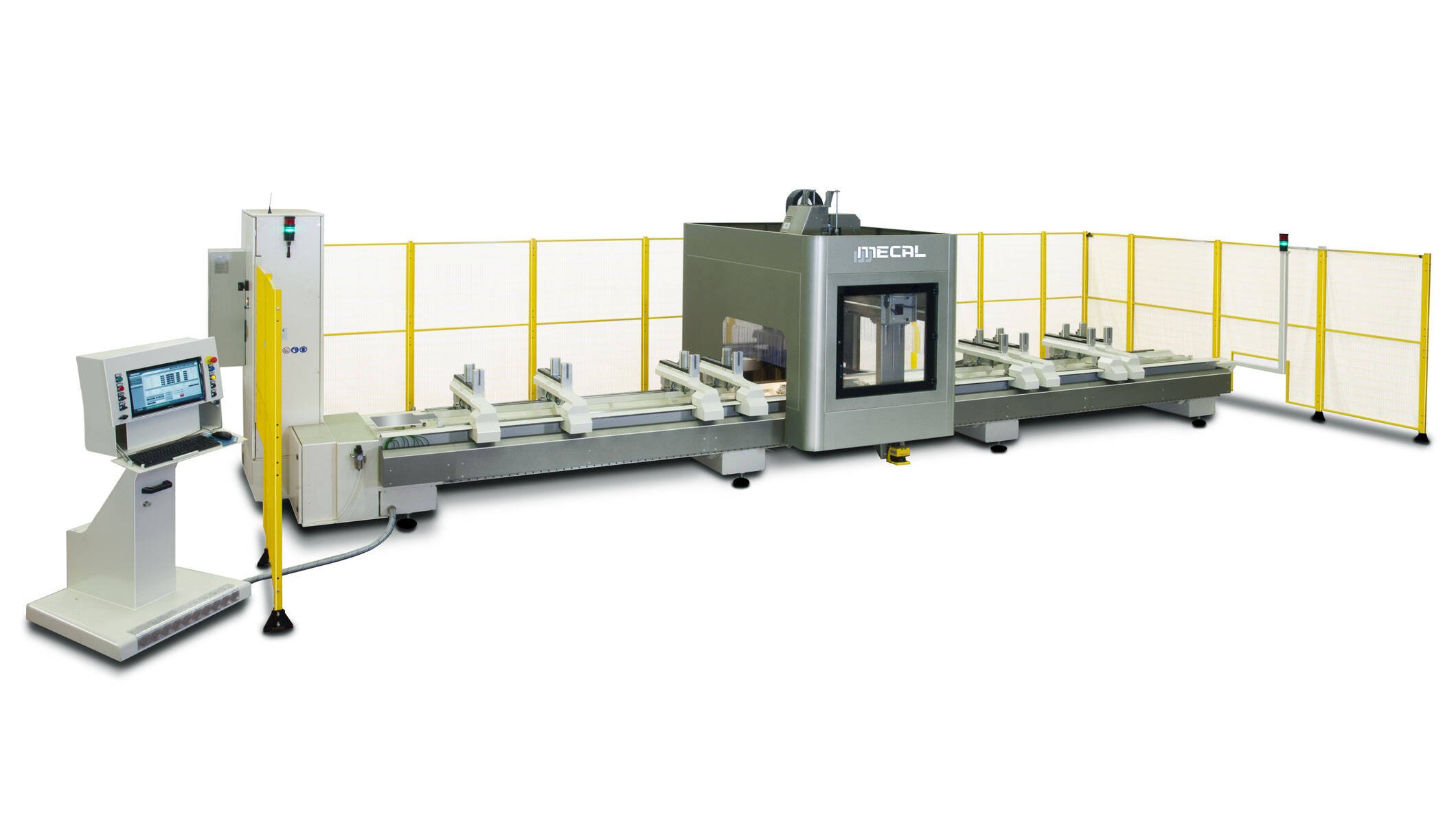

mc 304 ariel 5 mdt

Advantages

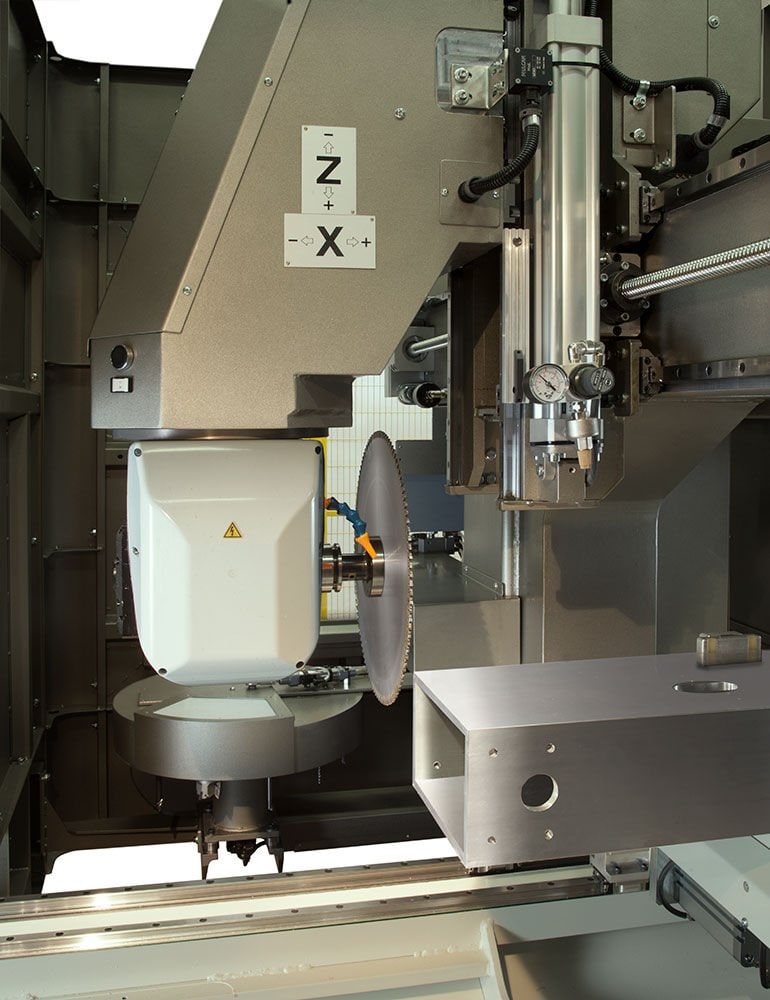

• The axis slide on precision profile guides and are driven by motors operated with digital systems.
• All slide ways are lubricated through an automatic centralized system.
• Simultaneous clamp positioning.

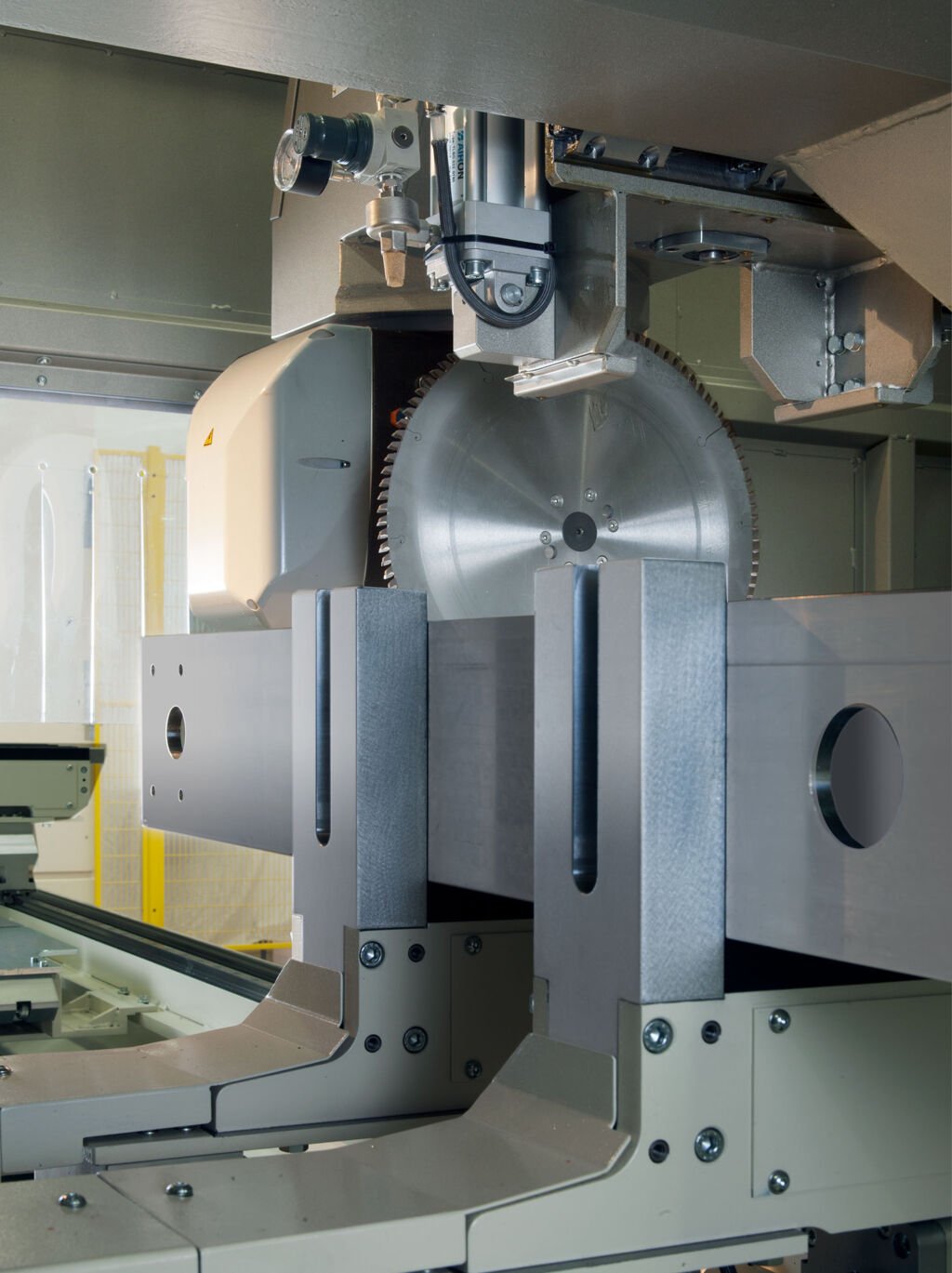

• The vices slide on precision profile guides and are positioned with independent motorization on each clamp, managed by CNC.
• The independent powered system allows the positioning of each individual clamp unit in a very reduced time. This system allows the automatic repositioning of the clamp during the machining.
• Fully equipped with digital technology. The data communication is via optical fiber, ensuring high transmission speed and a complete absence of interferences caused by external factors (frequency, voltage, etc).
• Max working section: 500 x 300 mm (YxZ)
• The longitudinal area of the machine can be used as a single working field or in pendular mode obtaining 2 separate working zones, with loading and unloading of the pieces in masked time. You can machine different pieces inside the 2 working areas.

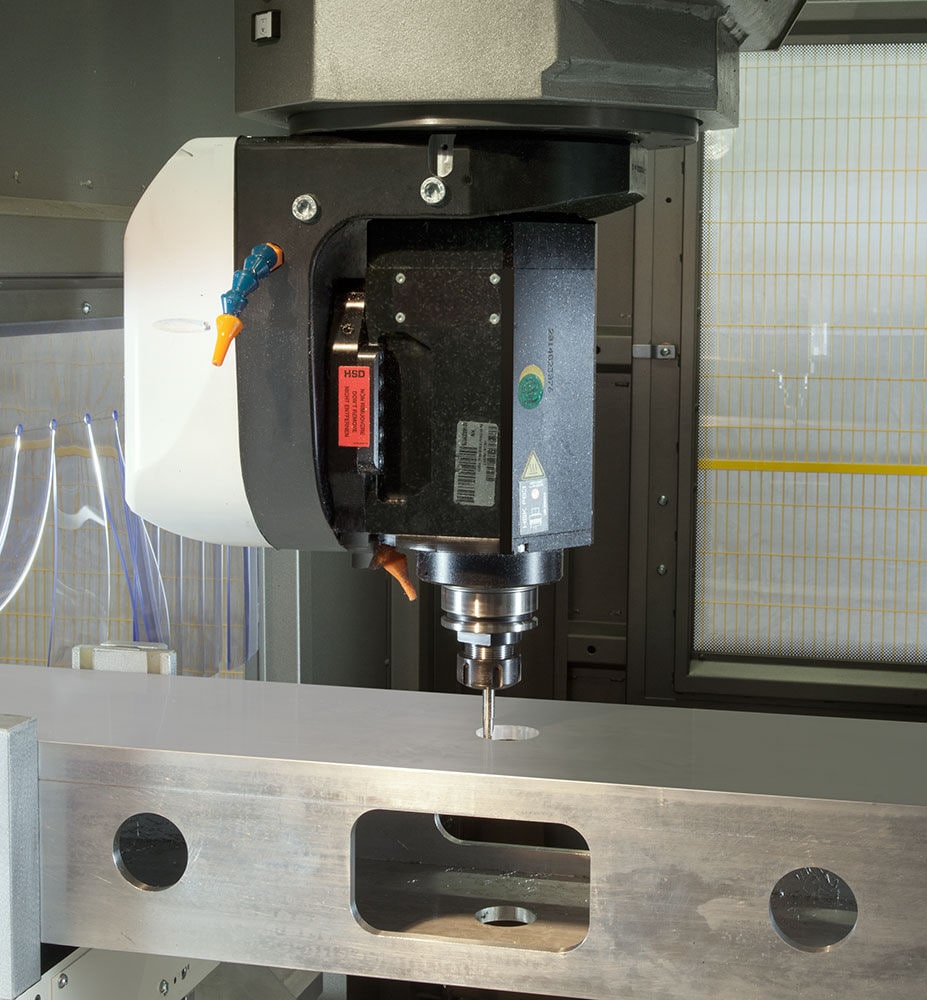

• The high performance provided from the electric spindle 10 kW and from the 12 positions tools magazine make possible to diversify the working with great flexibility.
• “The tool magazine with 12 positions is located on the carriage of the machine; the tool change can be realized in any position of the working area, with significant time reduction.”
• The strong base formed by tubulars guarantees the fundamental structural rigidity of the machine.
• The tools cooling is realized through a centralized minimal system.
• The machining scraps can be collected in suitable and manually extractable tanks. As alternative, a motor-driven conveyor with rubber belt can be installed, to eject the scraps outside the base.
