sw 553 reverse garda 3
(512) 931-1962

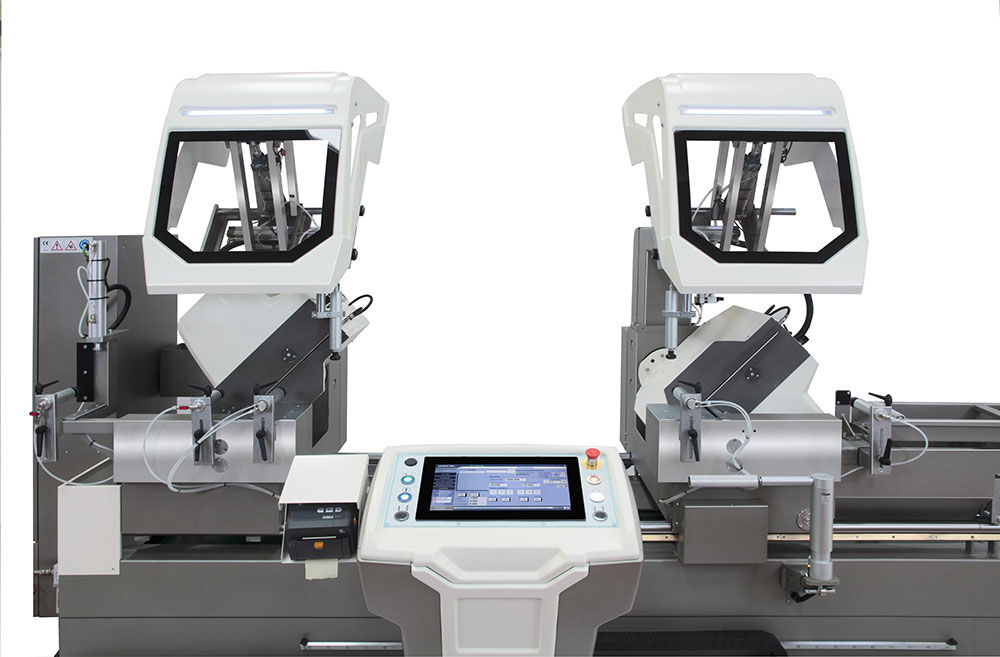

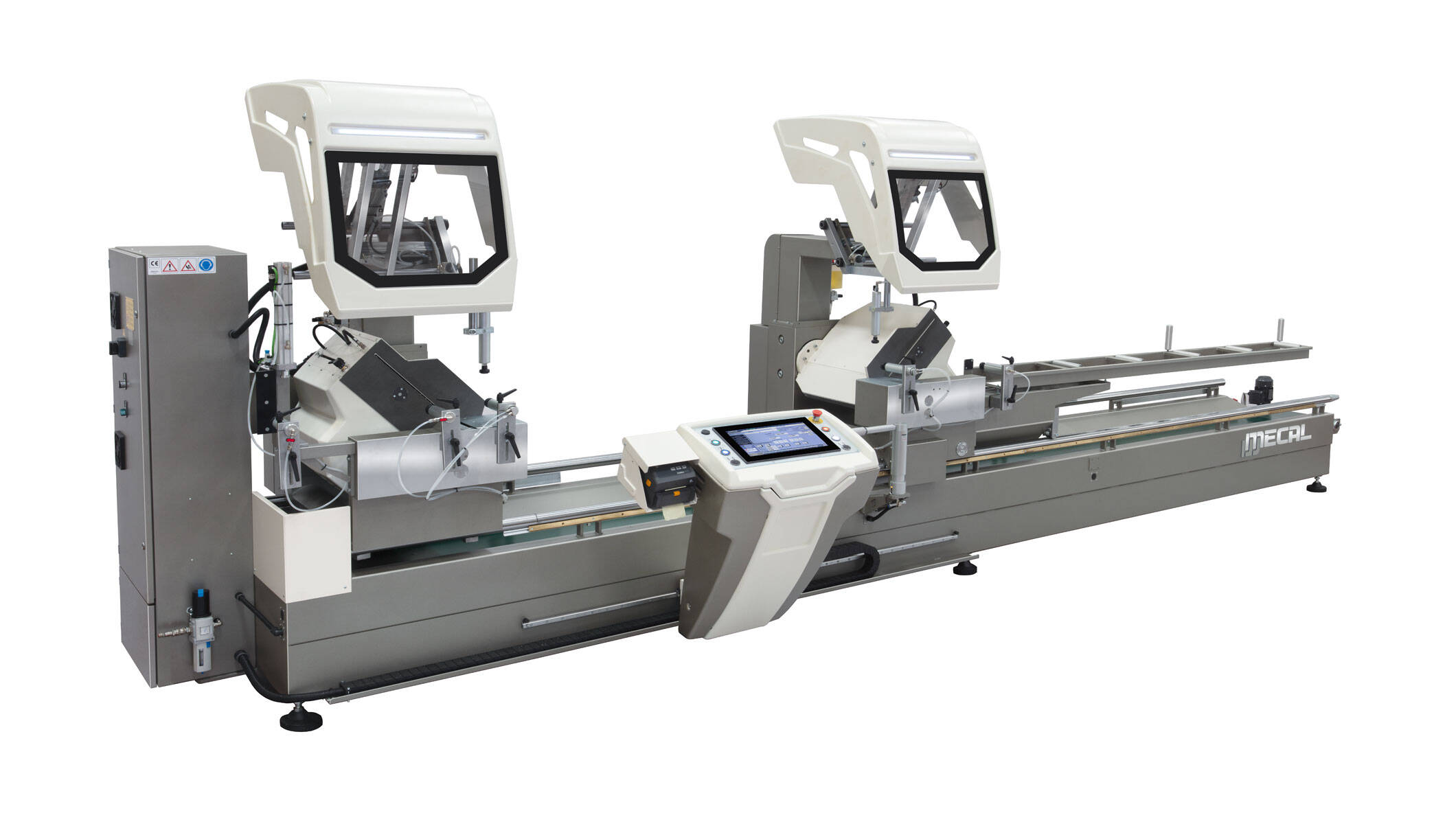

Double mitre saw with a fixed unit on the left and the other one movable, with blade diameter 550 mm.
- Automatic positioning of the movable unit.

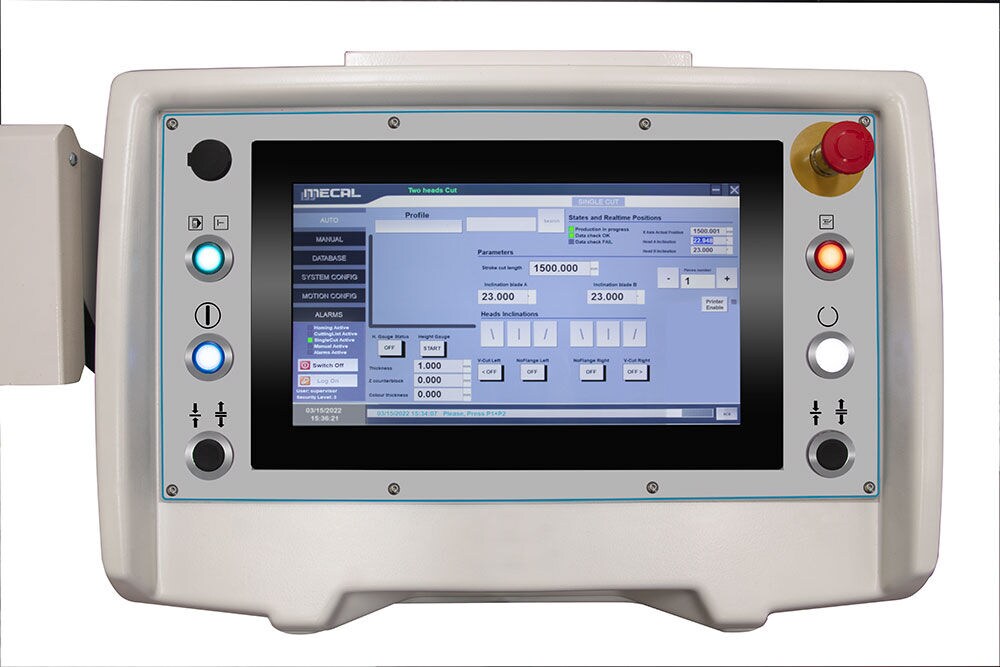

- Electronic positioning of the cutting units on any angle within 22,5° and 135°.
- Realized with cutting lenght of 5000 mm or 6000 mm.
Advantages
- Wide cutting capacity by means of sawblades dia. 550 mm.
- Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.
- Frontal and straight blade feed with speed adjustments.
- Hydro-pneumatic blade feed.

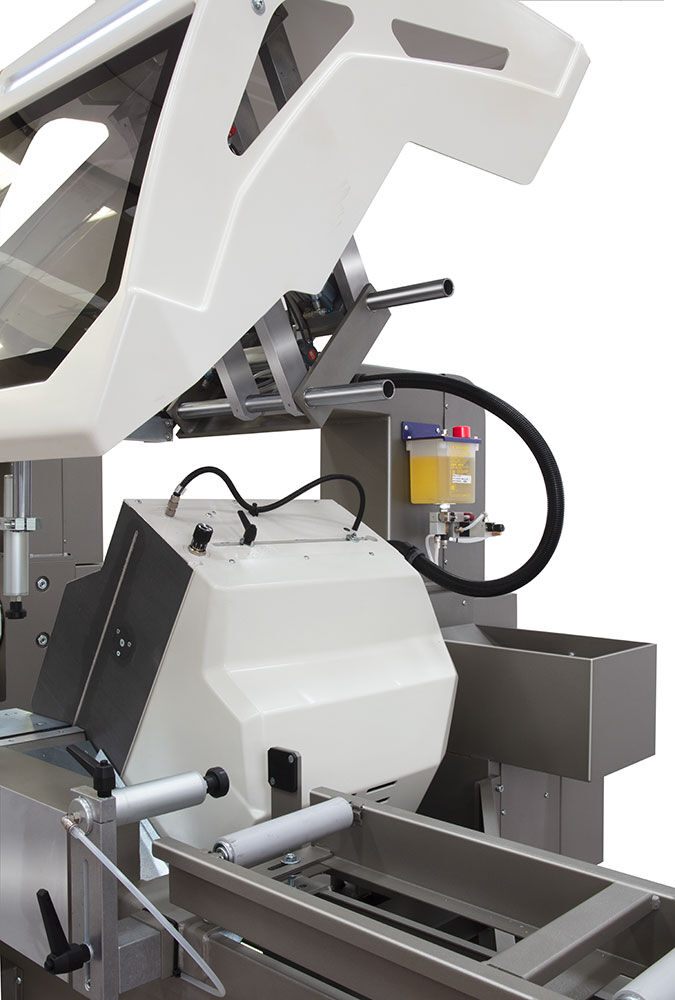

- Dynamic protection guards for a total covering of the cutting area.

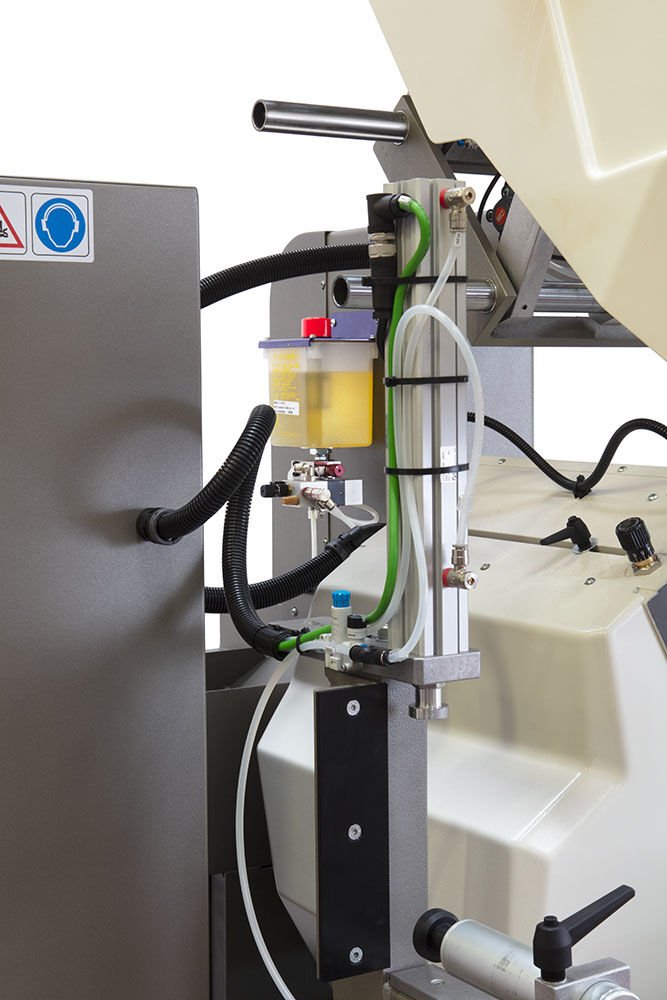

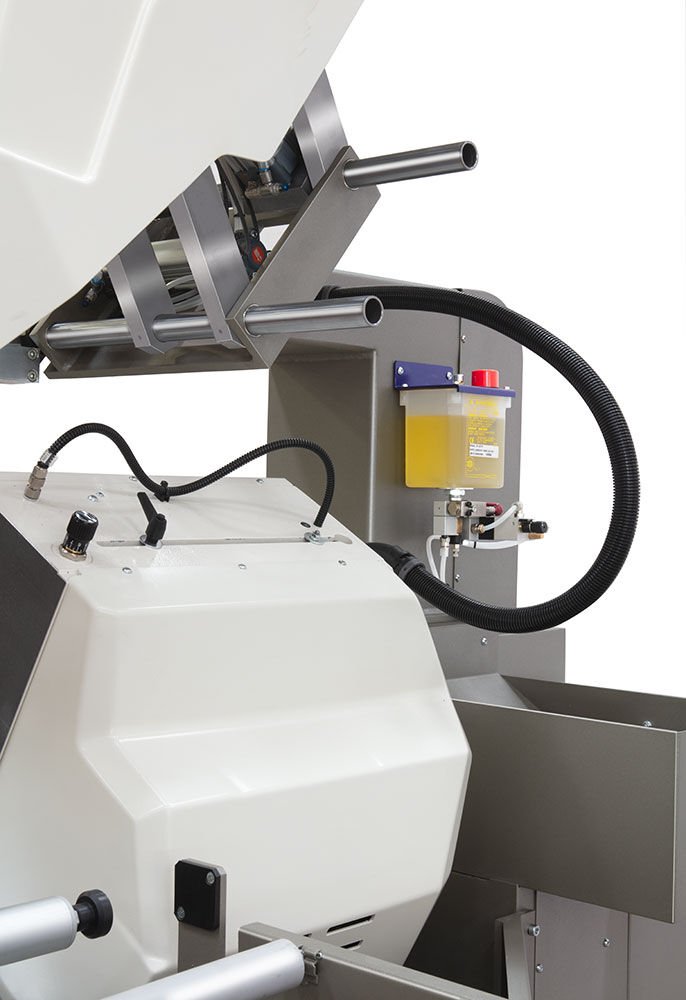

- Mist spray lubrication tools (Venturi system).
- Pre-arranged to connect an exhaust extractor for swarfs.

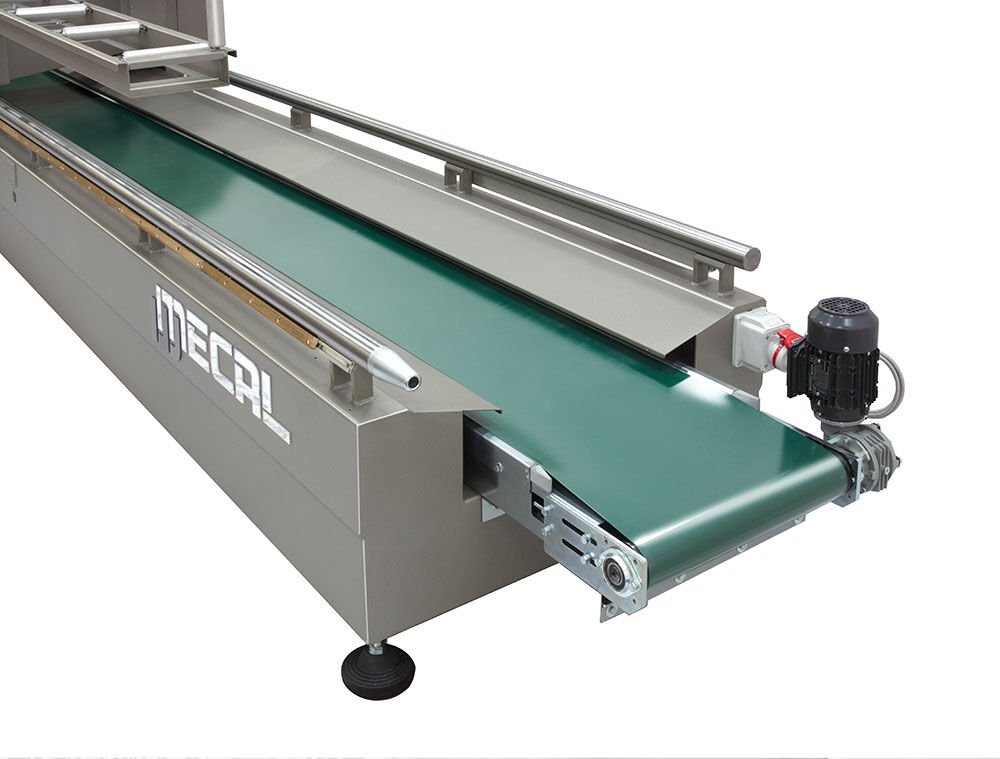

- Pre-arranged to connect a motorised belt conveyor.
Technical data
| Contemporary useful cutting (90°) | mm | 5000/6000 |
| Cutting length (min. 90°) | mm | 350 |
| Tilting range | deg | 135<>22,5 |
| Sawblade diameter | mm | 550 |
| Diameter bore | mm | 30 |
| Power | kW | 3,0 (x 2) |
