sw 553 argus Aluminium Processing

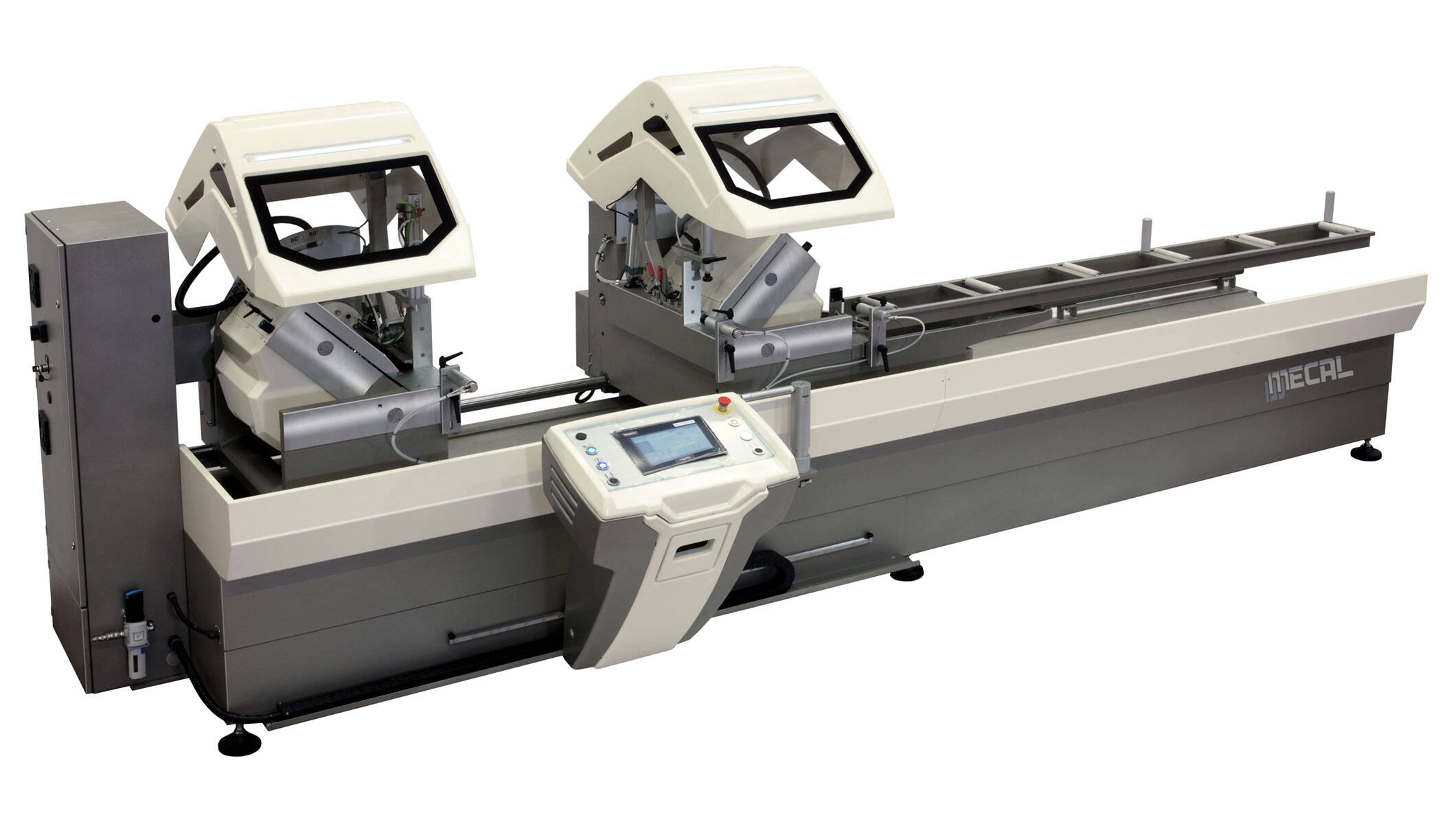

Double mitre saw with a fixed unit on the left and the other one movable, with blade diameter 550 mm.
Powered positioning of the mobile cutting unit
Pneumatic tilting of the cutting heads on pre‐selected angles (90°, 45° or 22,5°)
The intermediate degrees can be obtained by manually setting mechanical stops
Realized with cutting length of 5000 mm or 6000 mm.

Advantages

Frontal and straight blade feed with speed and stroke adjustments.
Hydro ‐ pneumatic blade feed.
Dynamic protection guards for a total covering of the cutting area
Mist spray lubrication tools (Venturi system)
Pre‐arranged to connect an exhaust extractor for swarf
Pre‐arranged for the inclusion of a motorized belt conveyor for evacuation of chips

Contemporary useful cutting (90°)	mm	5000/6000
Cutting length (min. 90°)	mm	400
Tilting range	deg	90°-45°-22,5°
Sawblade diameter	mm	550
Diameter bore	mm	30
Power	kW	3,0 (x 2)
