as 600 top factory digit mql

(512) 931-1962

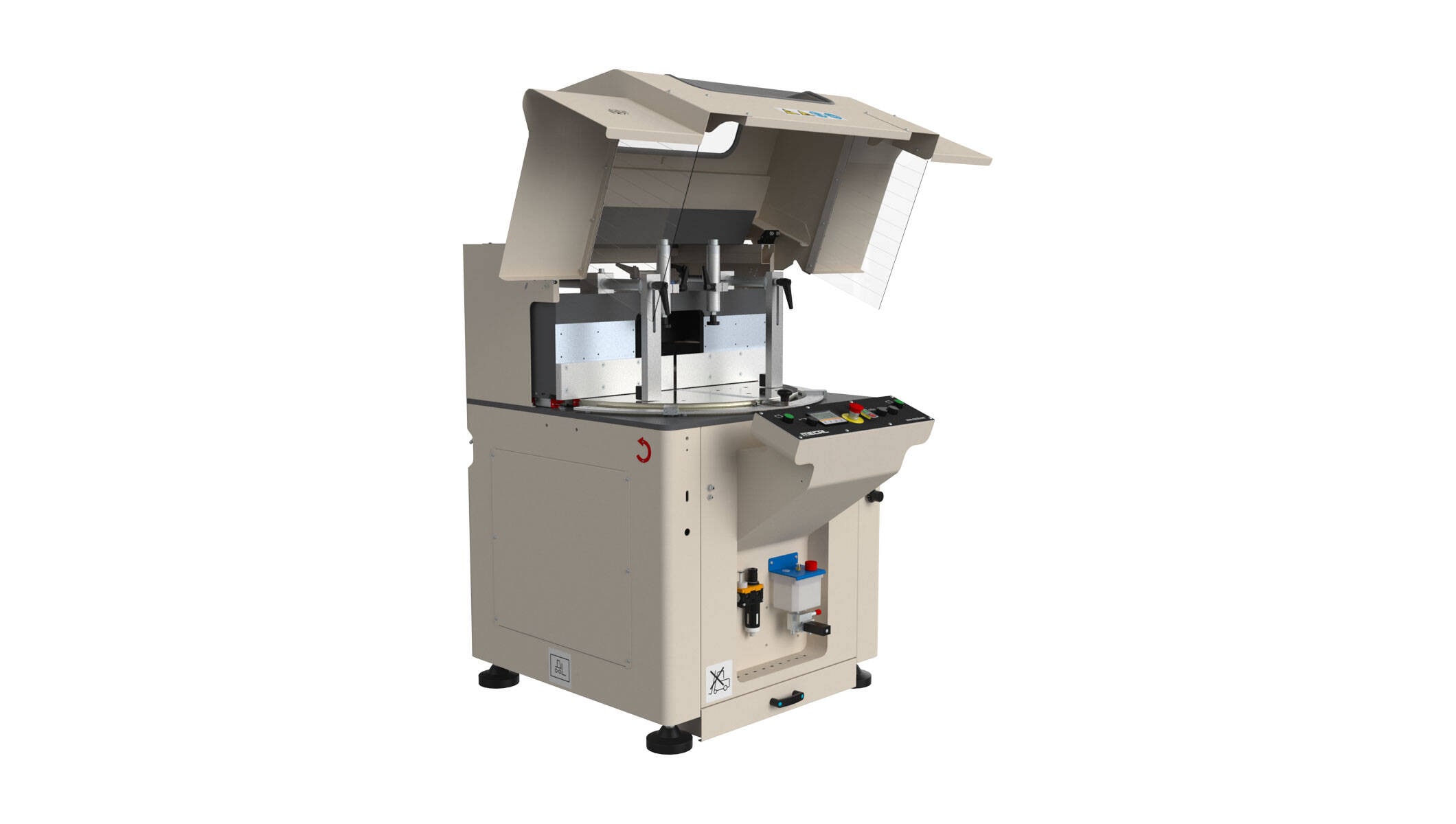

Machine photo as 600 top factory digit mql

Single mitre saw with upwards blade, Ø 600mm

  • Manual rotation of the working table up to 20° both toward right that toward left.
  • Quick positioning of the working table on pre‐selected angles (90°, 45°).
  • Manual positioning at any intermediate angle, with pneumatic locking.
  • DIGIT = with digital display for the angular positioning of the cutting plane.
  • MQL = Lubrication tool with Minimal Quantity Lubrication

Advantages

  • Blade feed by mean of hydro‐pneumatic unit.
  • The structure foreseen for the support of the profile is shiftable manually, to increase the cutting capacity at 90°.
  • Protective hood of the cutting zone with pneumatic drive movement.
  • Lubrication tool with Minimal Quantity Lubrication.
  • Pre‐arranged to connect a vacuum cleaner.

Technical data

Rotation of the cutting unit (right)   20°
Rotation of the cutting unit (left)   20°
Sawblade diameter mm 600
Sawblade bore mm 50
Speed of tool rotation rpm 2800
Blade motor power kW 4
Installed electric power kW 4,2
Compressed air supply bar 7
Air consumption per working cycle Nl 16
Length mm ± 920 / 1520
Width mm  ± 1320
Height mm ± 1465 / 1800
Weight kg ± 470
