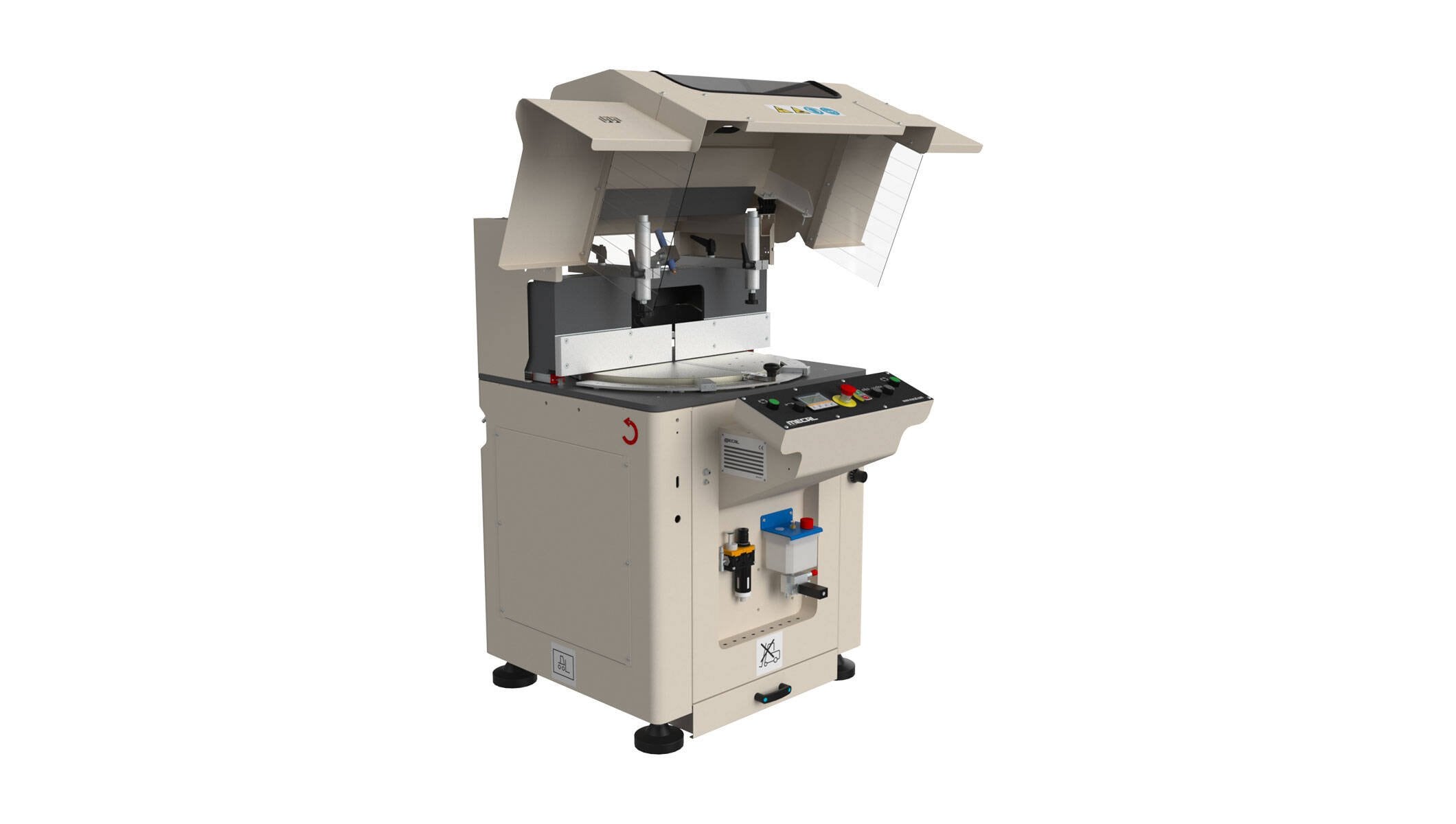

as 500 top
(512) 931-1962
Single mitre saw with upwards blade, Ø 500 mm
- Manual rotation of the working table, up to 20° both toward right that toward left.
- Quick positioning of the working table on pre‐selected angles (135°, 90°, 45°).
- Manual positioning at any intermediate angle, with pneumatic locking.
Advantages
- Blade feed by mean of hydro‐pneumatic unit.
- Angular positioning devices that can be set manually on the goniometer.
- The structure foreseen for the support of the profile is shiftable manually, to increase the cutting capacity at 90°.
- Protective hood of the cutting zone with pneumatic drive movement.
- Lubrication tool system with a spraying mist device (Venturi system).
- Pre‐arranged to connect a vacuum cleaner.
Documentation
-
as_500_top_EN
Download
