dmc sd 10

(512) 931-1962

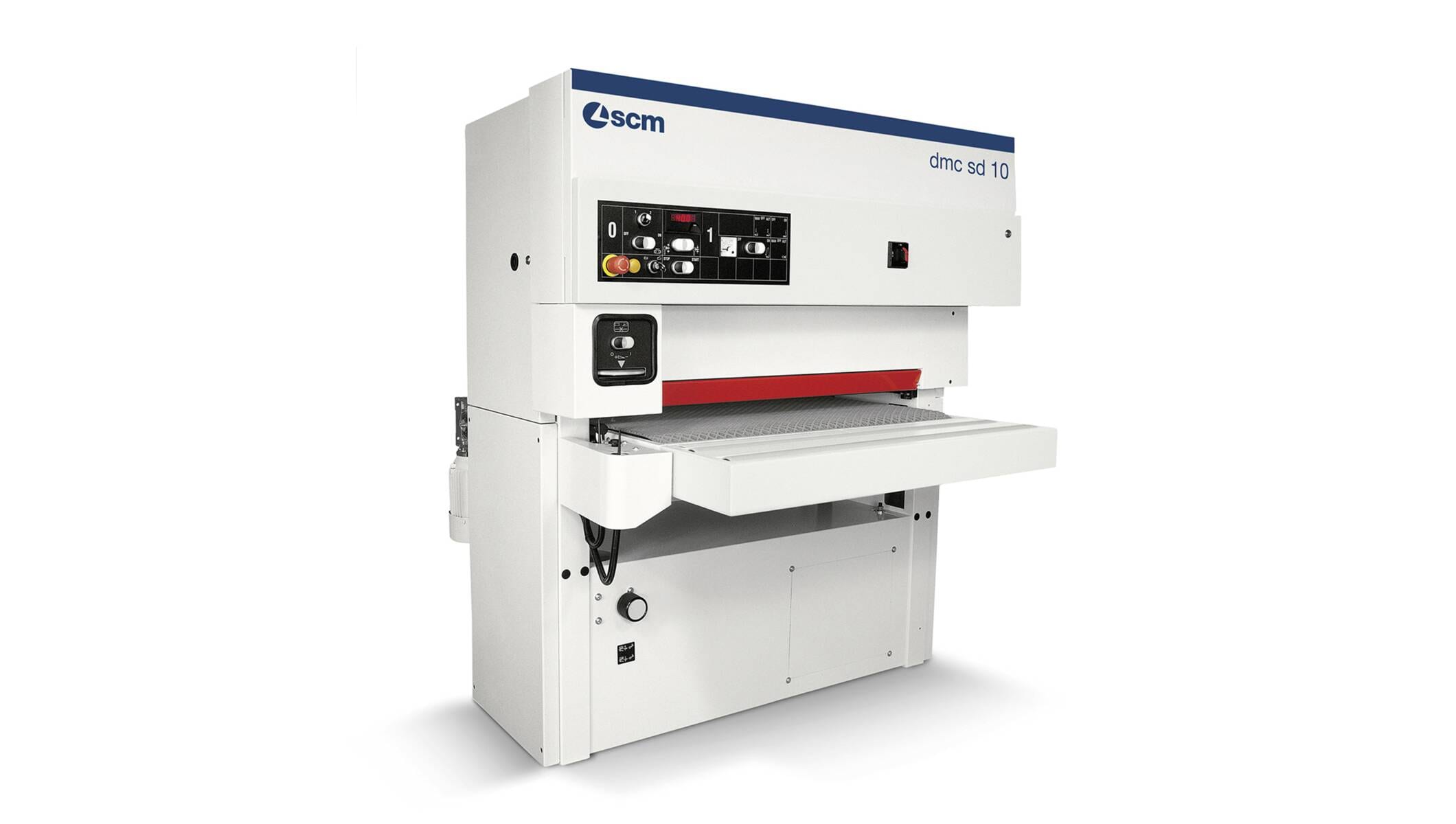

Zdjęcie maszyny dmc sd 10
Idealna do małych zakładów rzemieślniczych, mogąca zaspokoić wymogi kalibracji i szlifowania drewna litego.

Zalety

  • Automatic table positioning: practicality and precision together. The automatic detection of the work piece thickness allows precise machining at all times and without the risk of operator error. The decimal setting of this system also allows setting the work depth independently of the material.

  • Diamond-shaped belt: no slipping of the work pieces. The special geometry of the diamond-shaped profile of the transport belt provides the best traction surface for the work piece and with the increased support area also ensures maximum stability.

  • Compact to provide more floor space. The very much reduced size of all Sandya wide belt sanders simplifies their positioning in the workshop, while maintaining the performance and production potential of the sanders.

Dane techniczne

Szerokość robocza 950 mm
Min./max.obrabiana szerokość 4 - 170 mm
Szerokość taśmy ściernej 970 mm
Długość taśmy ściernej 1.525 mm
Standardowa moc silnika głównego 5,5 kW
Prędkość posuwu transportera taśmowego 4,5/9 kW

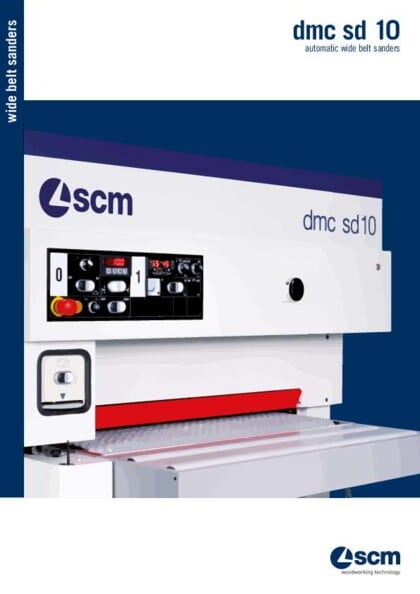

Dokumentacja
