dmc system xl
(512) 931-1962

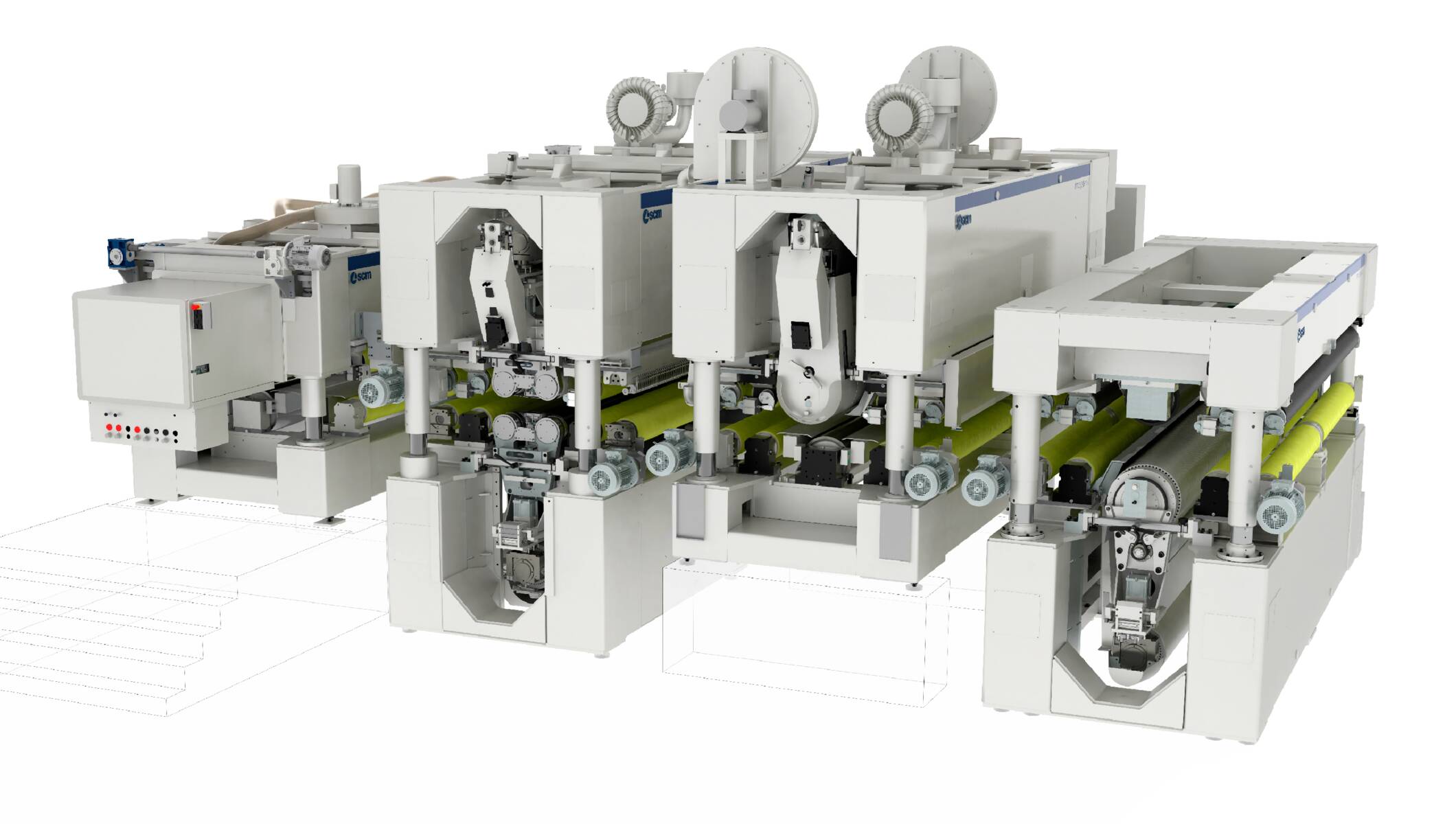

Automatic wide belt sander dmc system xl specifically designed for machining X-lam/CLT walls.
Completely modular machine according to customer’s needs, it is able to process walls up to 3700 mm width and 500 mm thickness.
dmc system xl thanks to its solid steel structure is suitable for high production capacities and stands out for remarkably low consumption due to the automatic feed speed adjustment.
Zalety
-
Total flexibility of configuration: thanks to its modular structure, it is possible to add working units in a following time.
-
“EPICS” sectioned pad to sand perfectly uneven surfaces. It automatically activates when the workpiece is passing through.
-
Simplified abrasive belt replacement, with extractable arm system (exclusive solution).
-
Crossbelt unit: for top surface quality and improved X-lam/CLT wall roughness.
It is equipped with powered rotating blowers for greater effectiveness of abrasive belt action and increased belt life.
Dane techniczne
| Working width | mm | 3700 |
| Min/max working thickness (fixed table) | mm | 20-500 |
| Longitudinal abrasive belts dimension | mm | 3720 x 3250 |
| Abrasive crossbelts dimension | mm | 300 x 14100 |
| Rollers work table feed speed | m/min | 2-10 |
Media
Dokumentacja
-
dmc system xl_EN
Download
