router multilathe
(512) 931-1962

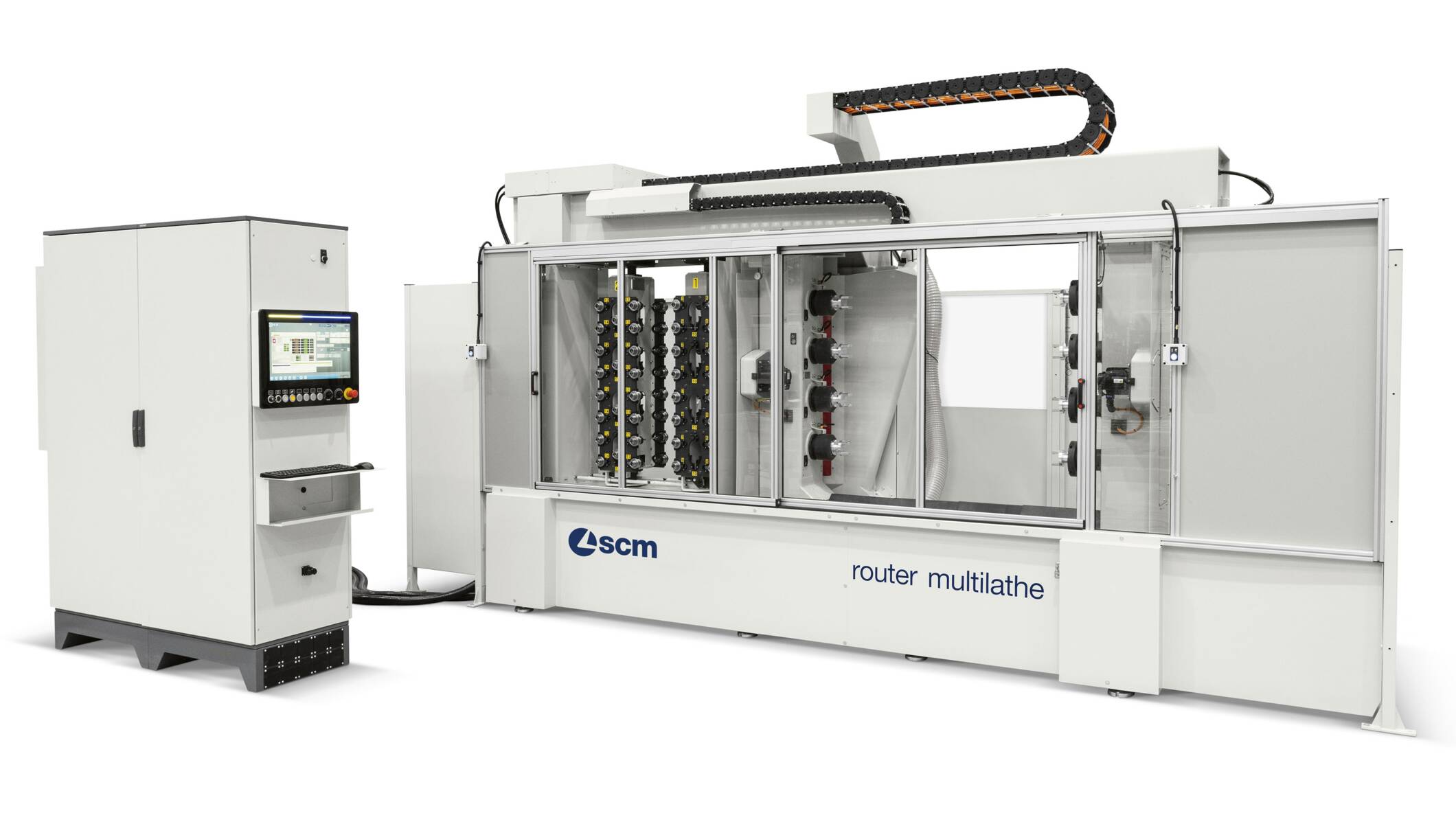

SCM router multilathe is the CNC machining centre with multiple work stations for manufacturing four work-pieces simultaneously.
Its machine configuration is ideal for the company that requires to significantly increase the production process, as it carries out all necessary machining in just one cycle with a single positioning, optimizing the processing time and providing high quality performance.
Voordelen
-
TOP PRODUCTIVITY
The machine features four work stations with rotating-interpolating axis, enabling the operation of four identical components. -
SUPERIOR FINISHING QUALITY
The machining unit is fitted with four electrospindles capable to execute 5-axis working operations, such as routing, drilling and turning, for shaping and finishing work-pieces with best accuracy. -
HIGH EFFICENCY
The wide capacity of the automatic tool store, up to 112 tools, allows the machine to be always ready for any operation, reducing tooling times. -
EASE OF USE
SCM touch screen console “eye-M” with Full HD LCD (21”) display enables a comfortable easy navigation of the machine managing software, with a simple and intuitive interface.
Technische gegevens
| router multilathe | |||
| Max. workable work-piece length | mm | 1.000 ÷ 1.500 | |
| Min. workable work-piece length | mm | 300 | |
| Machining unit electrospindles | n. | 4 | |
| Max. electrospindles power | kW | 13 | |
| Max. electrospindles rotating speed | rpm | 30.000 | |
| Electrospindles vertical center distance | mm | 272 | |
| Tools store | positions | 112 | |
