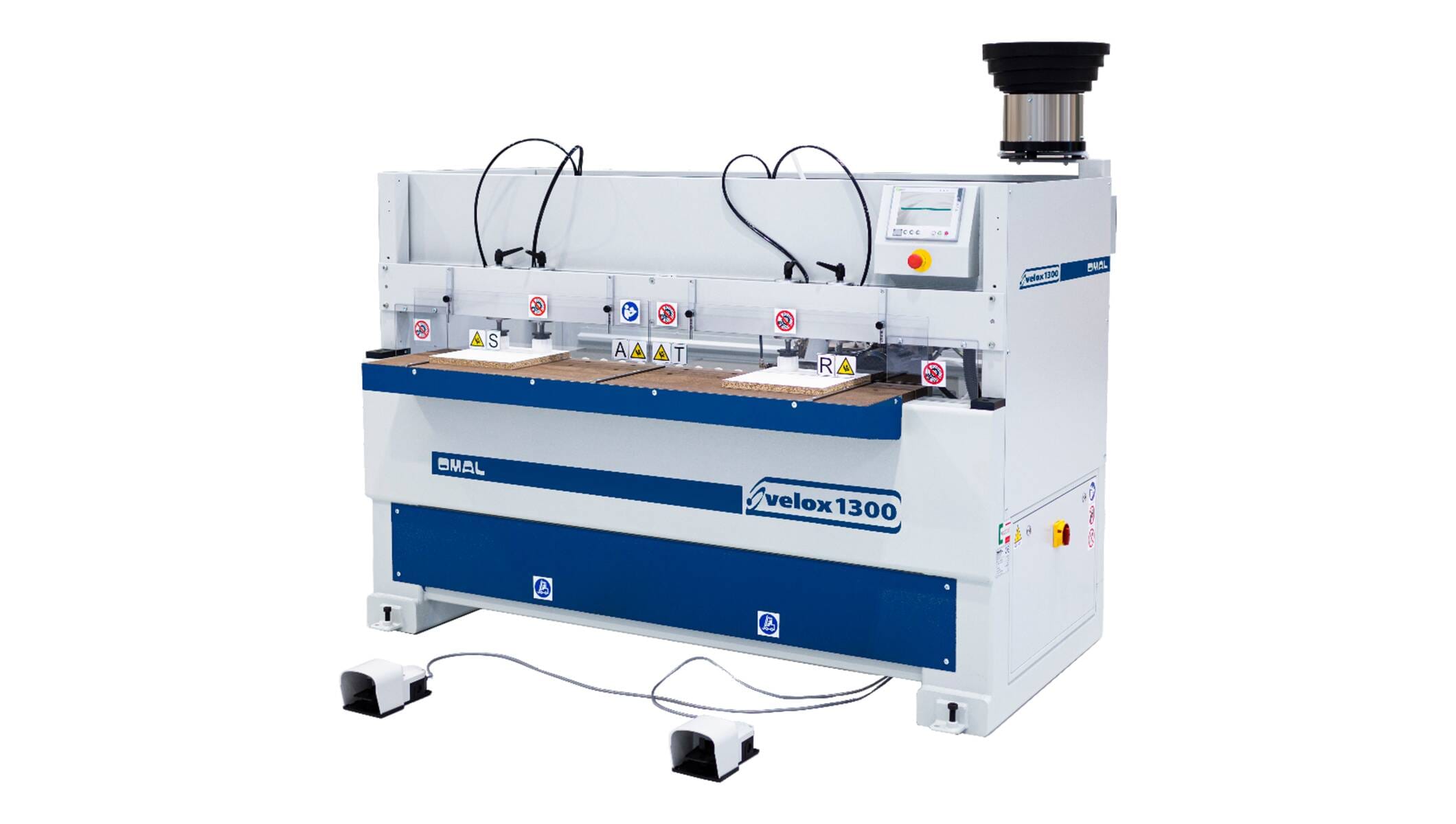

The OMAL Velox 1300 is a Horizontal Bore, Glue and Dowel and numerically controlled machines to drill, glue and insert dowels on horizontal pieces. The OMAL system of bore and dowel yields a cycle time of approximately ONE second for each bore, glue and dowel insertion when holes are on 32mm intervals.
Advantages
-

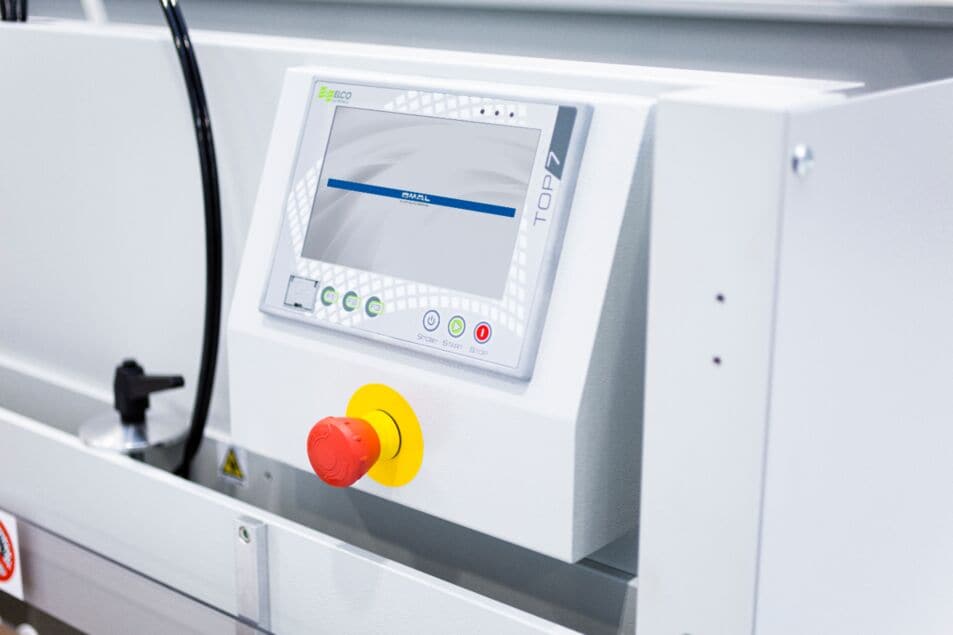

The PLC Touch Screen Control is user friendly, versatile software for writing and storing programs which can be written parametrically and are generated using graphical icons
-

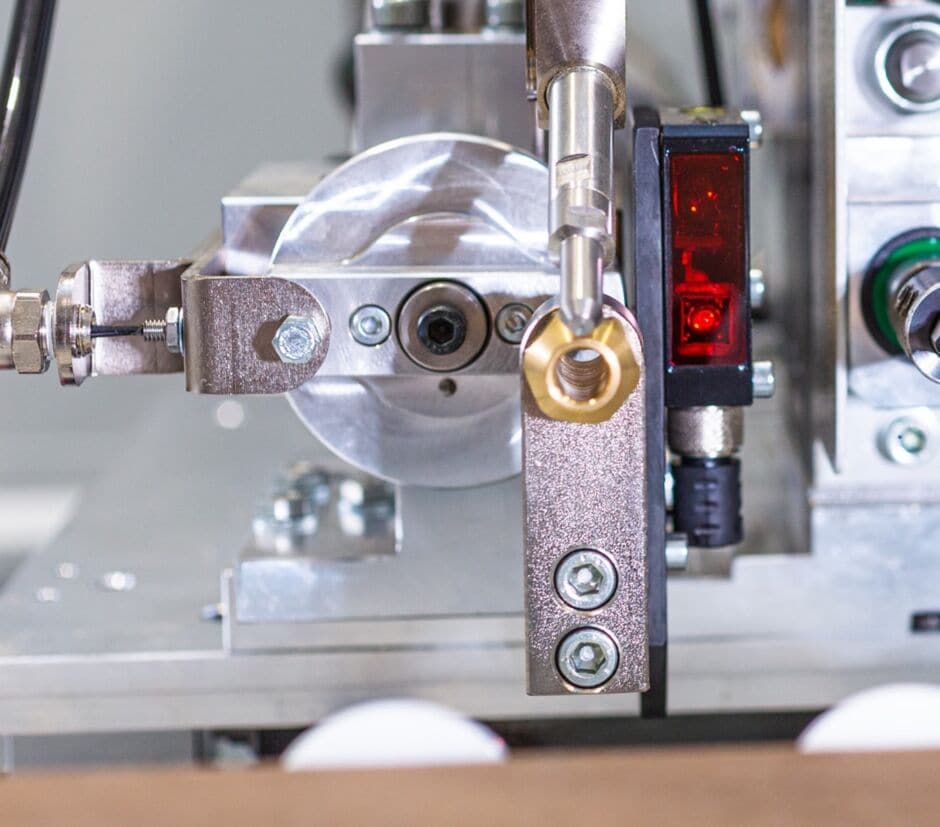

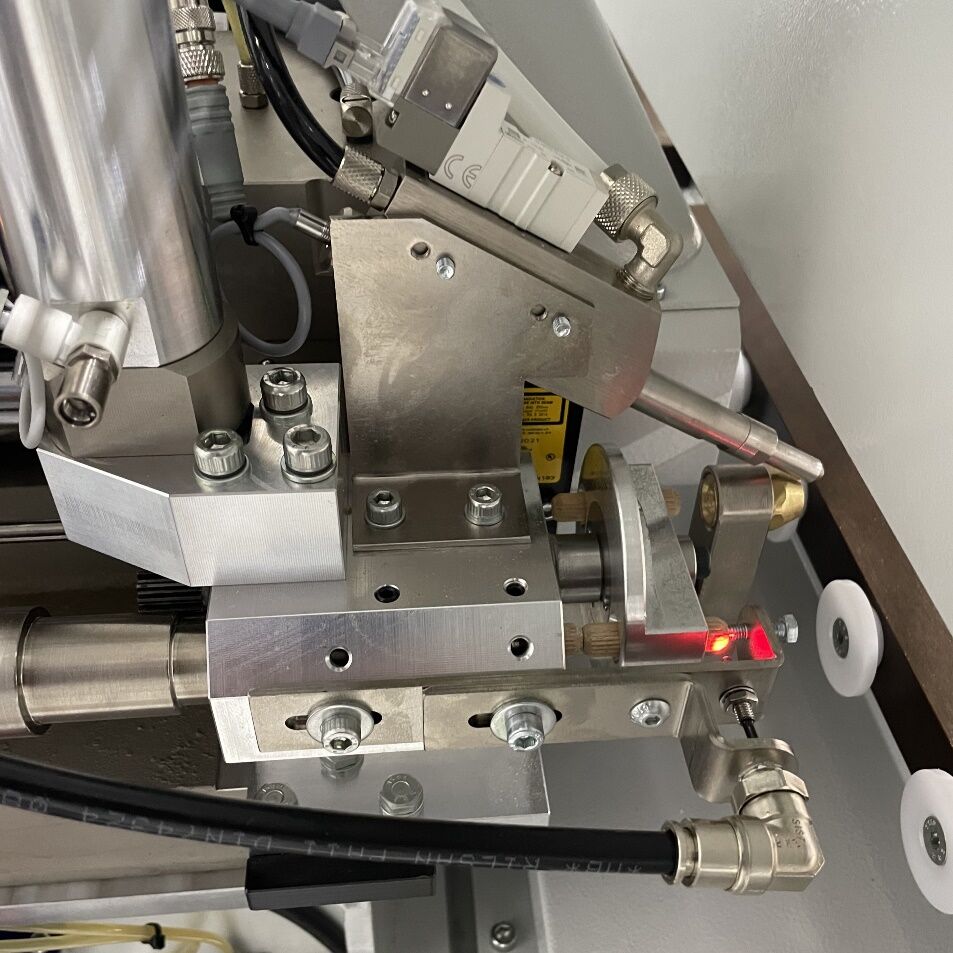

The dowel insertion revolver verifies a dowel is present via fiber optic sensor while a second dowel is inserted. The OMAL “SURE SHOT” revolver system guarantees a dowel is inserted every time
-

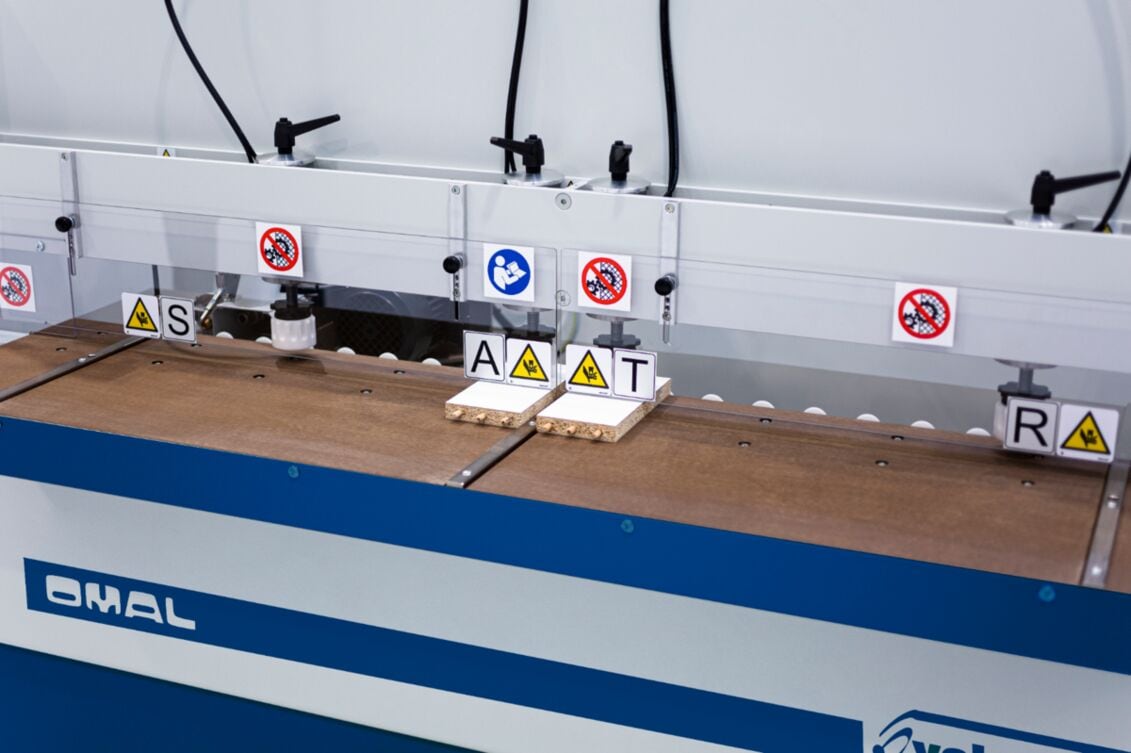

Four clamps are standard on the machine. The clamps will hold panels horizontally for edge processing.
-
OMAL’s width Laser Sensor will automatically measure the part and populate the program list for the part width to determine dowel spacing based on program call.
Technical data
|
Panel length |
20 mm (3/4”) – 1300 mm |
|
Panel width |
40 mm (1.57”) – ∞ |
|
Panel thickness |
10 mm (3/8”) – 25.4 mm (1”) |
|
Installed power |
10 Kw |
|
Compressed air |
6 BAR |
|
Dust extraction hood |
60 mm (2 3/8”) |
|
Dust extraction |
250 cfm |
|
Width “X” CNC |
1300 mm (51”) |
|
Depth “Y” manual |
40 mm (1.57”) |
|
Vertical “Z” manual |
40 mm (1.57”) |
|
Voltage |
220V/60Hz/3~ |
|
Net weight |
~1000 kg (2200 lbs) |
