sw 453 argus

(512) 931-1962

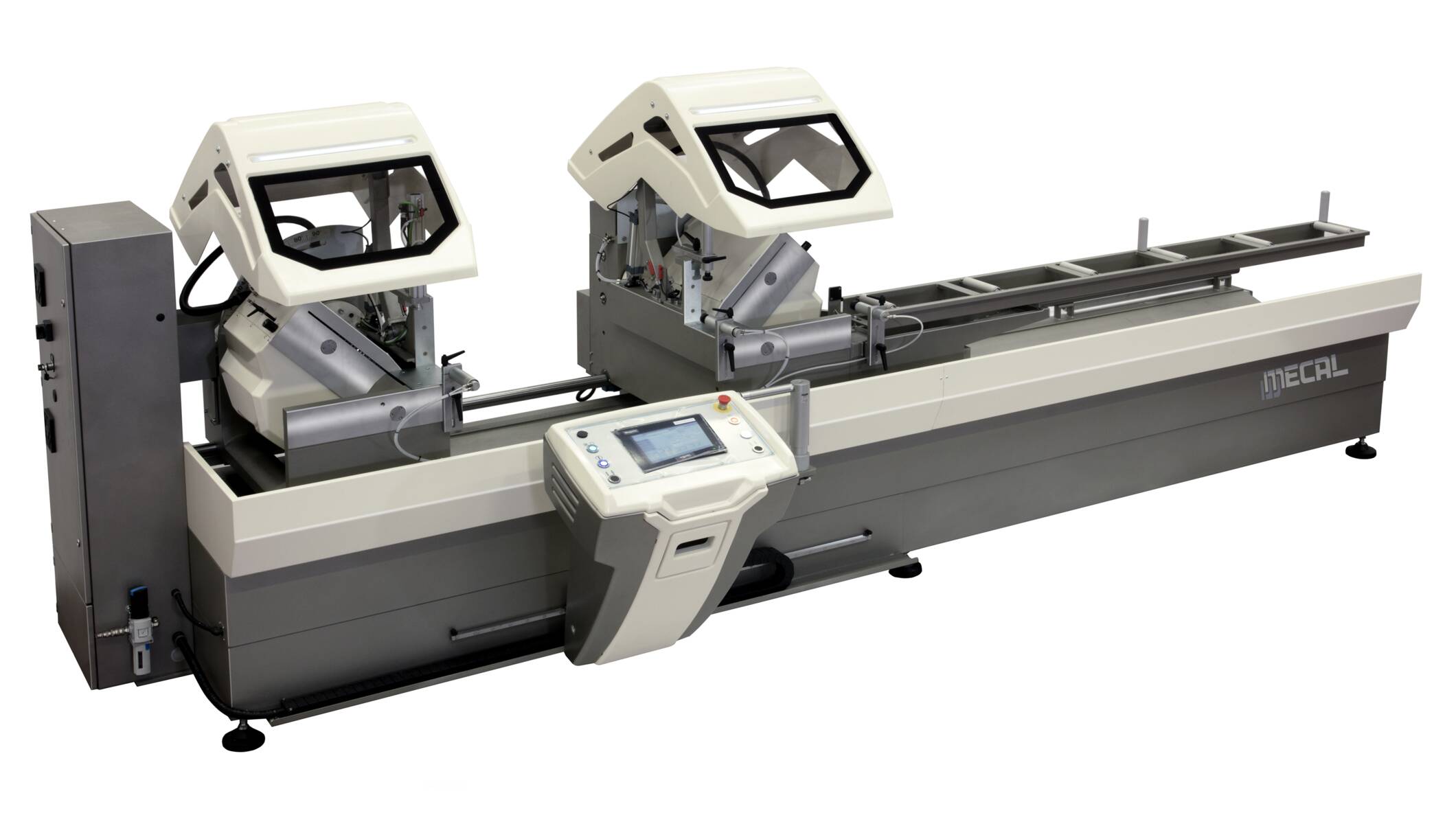

Machine photo sw 453 argus

  • Powered positioning of the movable unit.

  • Pneumatic tilting of the heads (90°, 45° or 22,5°).

  • The intermediate degrees can be obtainedby manually setting mechanical stops.

  • Realized with cutting lenght of 4000 mm, 5000 mm, 6000 mm.

  • Equipped with industrial computer (HMI 10.0″ Touch Screen).

Advantages

  • Electro-welded sheet base which has been designed in such a way to offer the maximum rigidity and use practicality.

  • Frontal and radial blade feed with speed adjustments.

  • Hydro-pneumatic blade feed.

  • Wide cutting capacity by means of sawblades Ø 500 mm.

  • Dynamic protection guards for a total covering of the cutting area.

  • Pre-arranged to connect an exhaust extractor for swarfs.

  • Pre-arranged to connect a motorized belt conveyor.

  • Mist spray lubrication tools (Venturi system).

Technical data

  SW 453 SW 553 SW 553-R
Electrical power supply 400 V - 50 Hz - 3 ~ + N + PE
Max. total electric power kW 5,5 (9,5) 7 (11) 7 (11)
Numerical control
Type IPC (Industrial PC)
Monitor 10” touch screen
Blade motor characteristics
Power kW 2x2,2 2 x 3 2 x 3
Max. revolutions rpm 2780
Pneumatic supply bar 7
Air consumption
Machine NI/ciclo 53 56
Blade standard cooling NI/min 100
Noise emission
Equivalent continuous sound level (Leq) dB(A) 99,1
Standardised sound power level dB(A) 118,8
Blade characteristics
outer  mm 500 550
inner mm 30 30
Body thickness mm 3,2 3,5
Tooth thickness mm 4,0 4,5
Tooth no.   120 140
Cutting angles
Inclination ° 22,5 ÷ 90 22,5 ÷ 90 45 ÷ 90
Standard cut length
Max. c/c distance Contemporary cut mm 4000/5000/6000 5000/6000 5000/6000
Over size cut (See information note below)
Min. c/c distance Contemporary cut mm 400 430 530
Under size cut 260 ÷ 400 350 ÷ 430 450 ÷ 530
Ultra short cut 0 ÷ 260 0 ÷ 350 0 ÷ 450
Total weight 1850 / 1950 / 2050
