minimax si x
(512) 931-1962

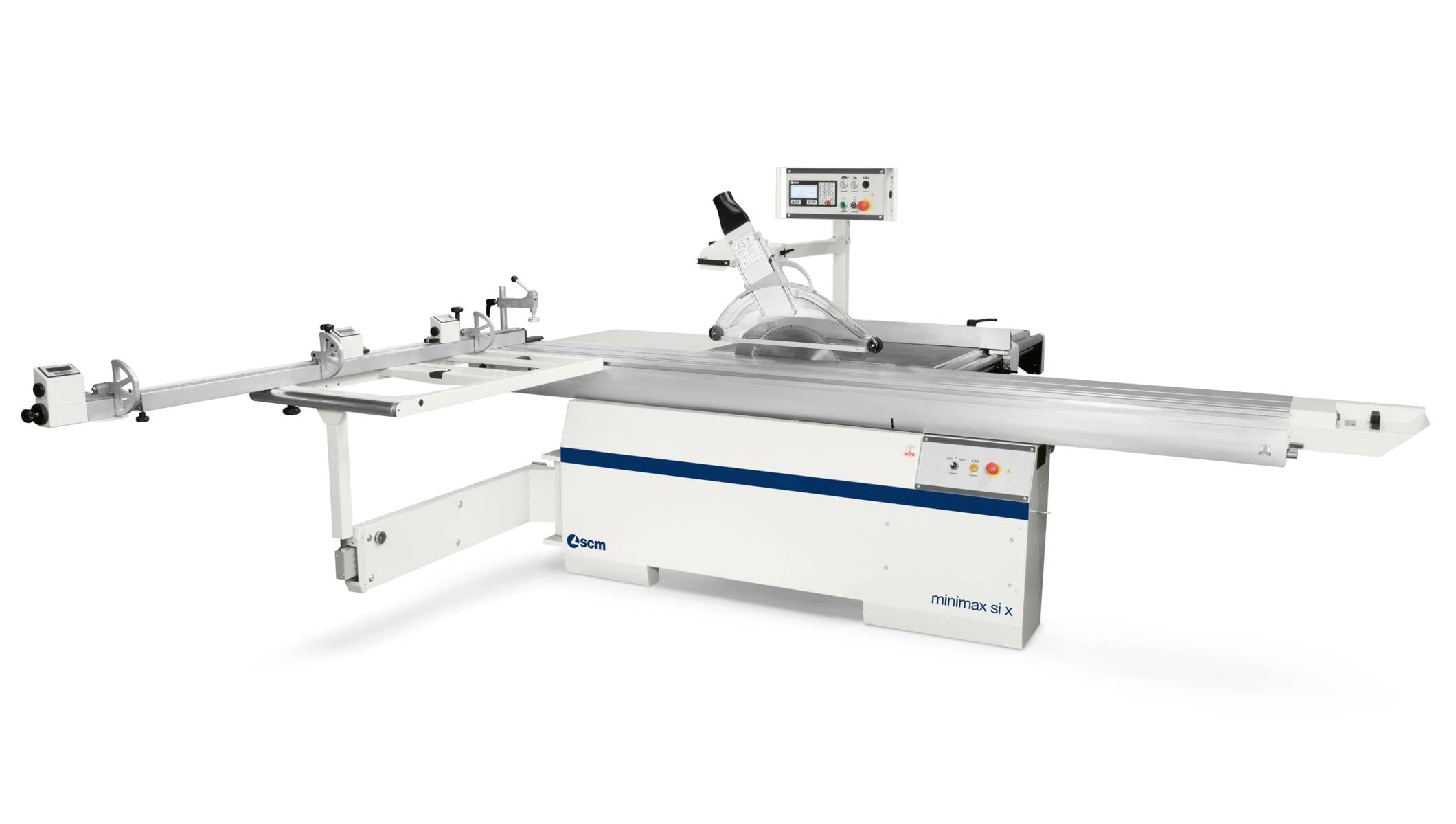

Circular saw with ±46° double tilting.
It ensures the perfect and easy cut of veneer panels or solid wood with high thickness both at 90° and angled at ±46°.
Advantages
-

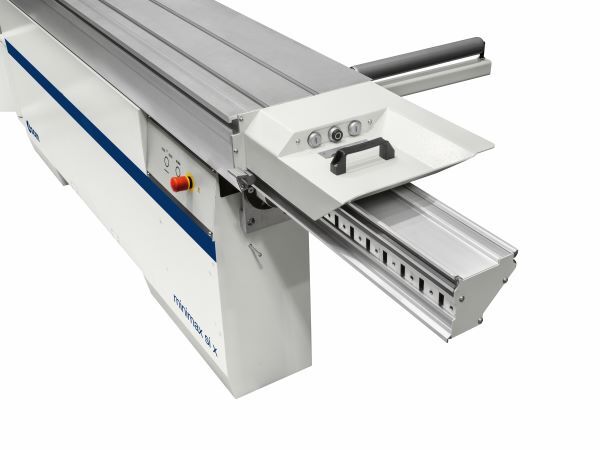

MAXIMUM CUT QUALITY GUARANTEED OVER TIME
New highly reliable sliding carriage, guanranteed for 10 years and developed to enhance performance and customization.
The carriage locking in any position makes the machine even more ergonomic and easy to use. -
SOLID AND STURDY STUCTURE
Made of a solid and sturdy structure, the saw blade unit enables an accurate cut.
On request, the scoring unit (option) is available for a perfect cut even on veneered panels. -

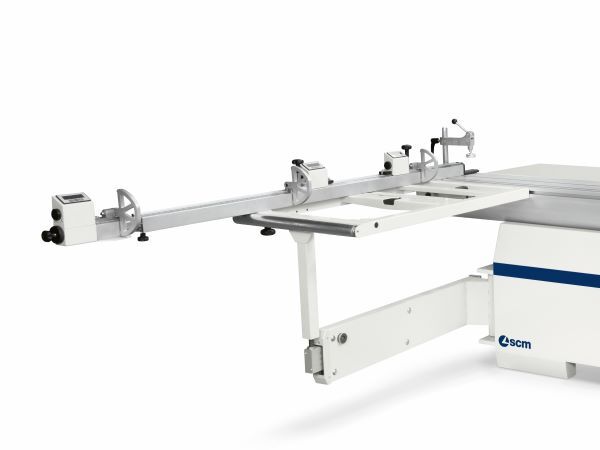

OPTIMAL SUPPORT
The squaring frame facilitates the panel loading and its mobile cross beams offer an optimal support also to smaller panels. Moreover, depending on customer's needs, different optional squaring frame devices are available. -

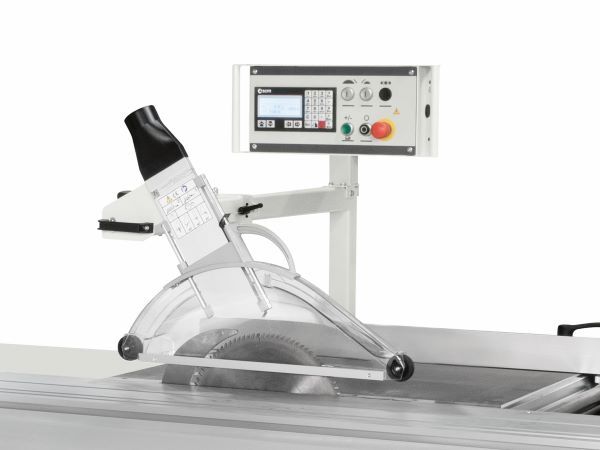

ELEKTRONISCHE STEUERUNG "READY 3" / "READY 3 UP"
Die Ready-Steuerung mit drei Achsen positioniert den Parallelanschlag automatisch.
Der Parallelanschlag kann wahlweise programmiert oder manuell verfahren werden. Der integrierte Niederhalter gewährleistet dabei maximale Flexibilität.
Bei der Version Ready 3 UP erfolgt die Bedienung zusätzlich über ein mobiles Bedienpanel.
Technical data
| minimax si x | ||
| Max. sawblade diameter with scoring blade (option) installed | mm | 400 |
| Max. sawblade projection from table at 90°/+45°/-45° | mm | 136/97/60 |
| Cutting width on parallel fence | mm | 1270 |
| Squaring stroke | mm | 2250÷3800 |
| Three-phase motors starting from | kW/Hz | 7 (8) / 50 (60) |
