minimax lab 300p

(512) 931-1962

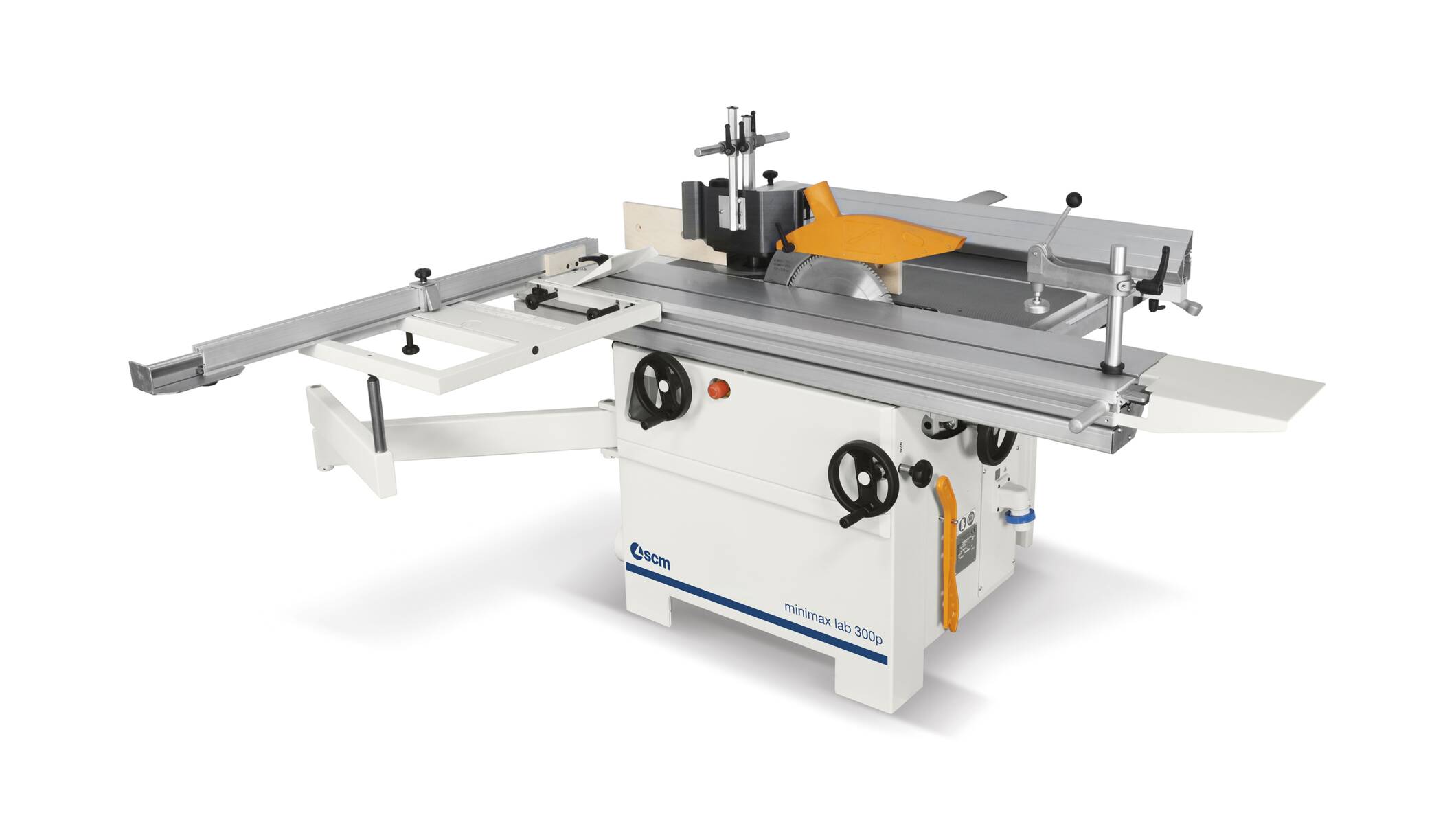

Maschinenfoto minimax lab 300p
Vielseitige und kompakte kombinierte Universalmaschine mit innovativen technologischen Lösungen für Präzision, Zuverlässigkeit und Sicherheit.

Vorteile

  • Best cutting

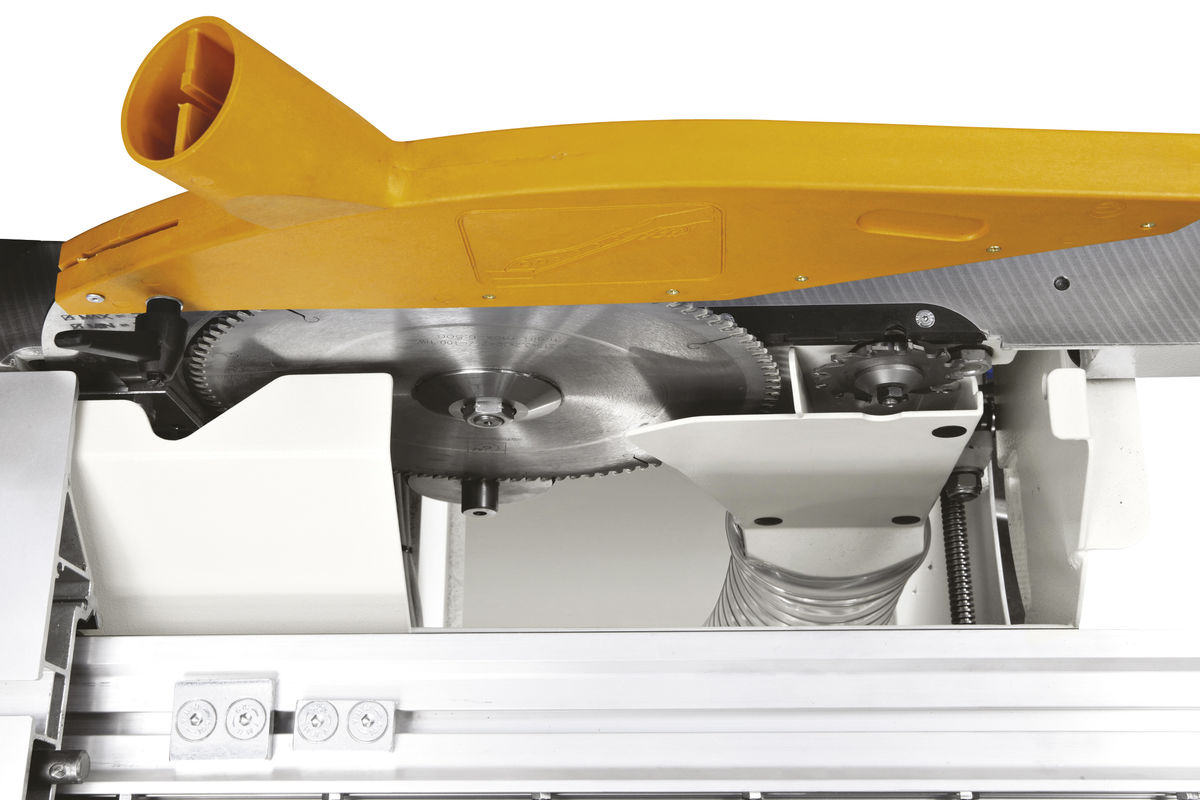

    New saw unit with a blade that has a maximum diameter of 315 mm with the scoring blade installed. The new scoring unit can be supplied on request and can easily be adjusted from outside the machine.

  • Perfectly stable support
    Easier, more precise cutting is possible thanks to perfectly stable support guaranteed, even for large work pieces, by the 270 mm wide sliding table.

  • Higher efficiency
    During the changeover from surfacing to thicknessing the surfacing tables open towards the inside of the machine with a 90° angle, facilitating thicknessing. Work pieces with a maximum height of 220 mm can be machined to the thicknesser. The new design of the dust-conveyor, protecting the cutter block, is specifically intended to further increase system safety and efficiency.

  • Superior performance
    The spindle moulder unit has a spindle with a useful working length of 100 mm. A tool with a maximum diameter of 180 mm can be retracted under the worktable. For machine maximum safety and increased flexibility, a spindle moulder protective hood for shaping is supplied as standard.

Technische Daten


lab 300p
Cutterhead working width mm / inches 300 / 12
Jointer bed length mm / inches 1300 / 51
Max. sawblade diameter with scoring blade installed mm / inches 315 / 12
Max. sawblade projection from table at 90°/45° mm / inches 100 / 78 3.94 / 3.07
Cutting width on parallel fence (Rip capacity) mm / inches 800 / 31.5
Max. useful spindle length mm / inches 100 / 4
Max. tool diameter when profiling mm / inches 210 / 8.27
Spindle moulder speed rpm 4000 / 7000 / 9000
(3x) Single-phase motors Hp 3.4
Max. squaring stroke of sliding table saw mm / ft 1600 / 5.5
