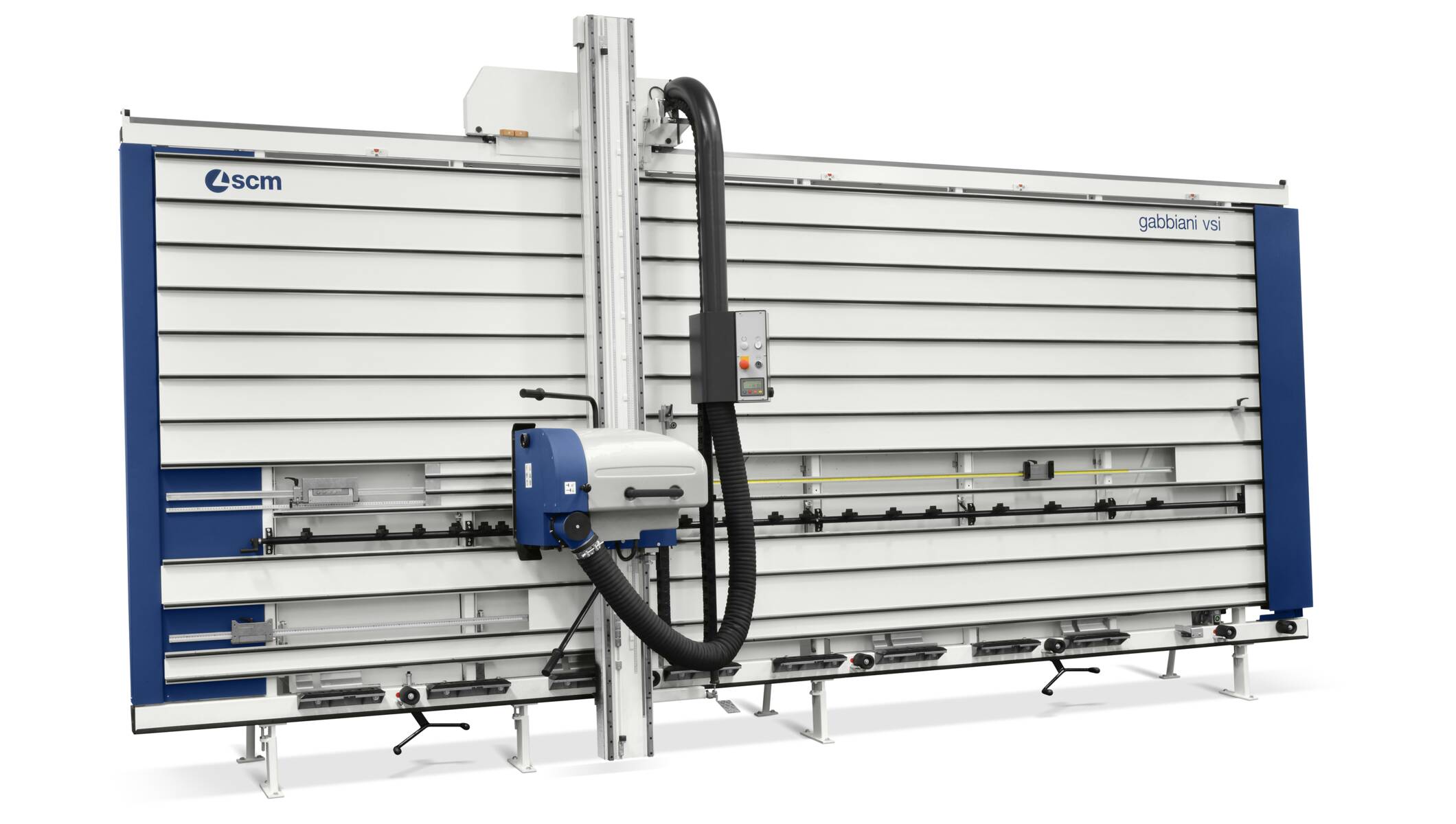

Vertical panel saw with independent motors for main blade and scorer with mechanical plunging designed to make horizontal and vertical cuts on different types of wood materials.
Advantages
-
FUNCTIONAL AND COMPACT
Thanks to the reduced overall dimensions
-
POWERFUL AND STURDY
The electro welded frame gives the highest resistance to the solicitations
-
CUTTING QUALITY WITHOUT COMPROMISE
Main blade and engraver moved by independent motorizations
Technical data
| VSI32 | VSI42 | |
| Max. length of horizontal cut | 3200 | 4200 |
| Max. length of vertical cut | 3200 | 4200 |
| Max. height of vertical cut | 1900 | 2800 |
| Max. height of horizontal cut | 1700 | 2080 |
| Max. cutting thickness | 60 | 60 |
| Motor power | 3.7 | 3.7 |
| Blade diameter | 250 | 250 |
| Rotating speed | 5300 | 5300 |
| Mechanical positioners for horizontal cuts | 4 | 4 |
| Stops for vertical cuts | 1 | 1 |
