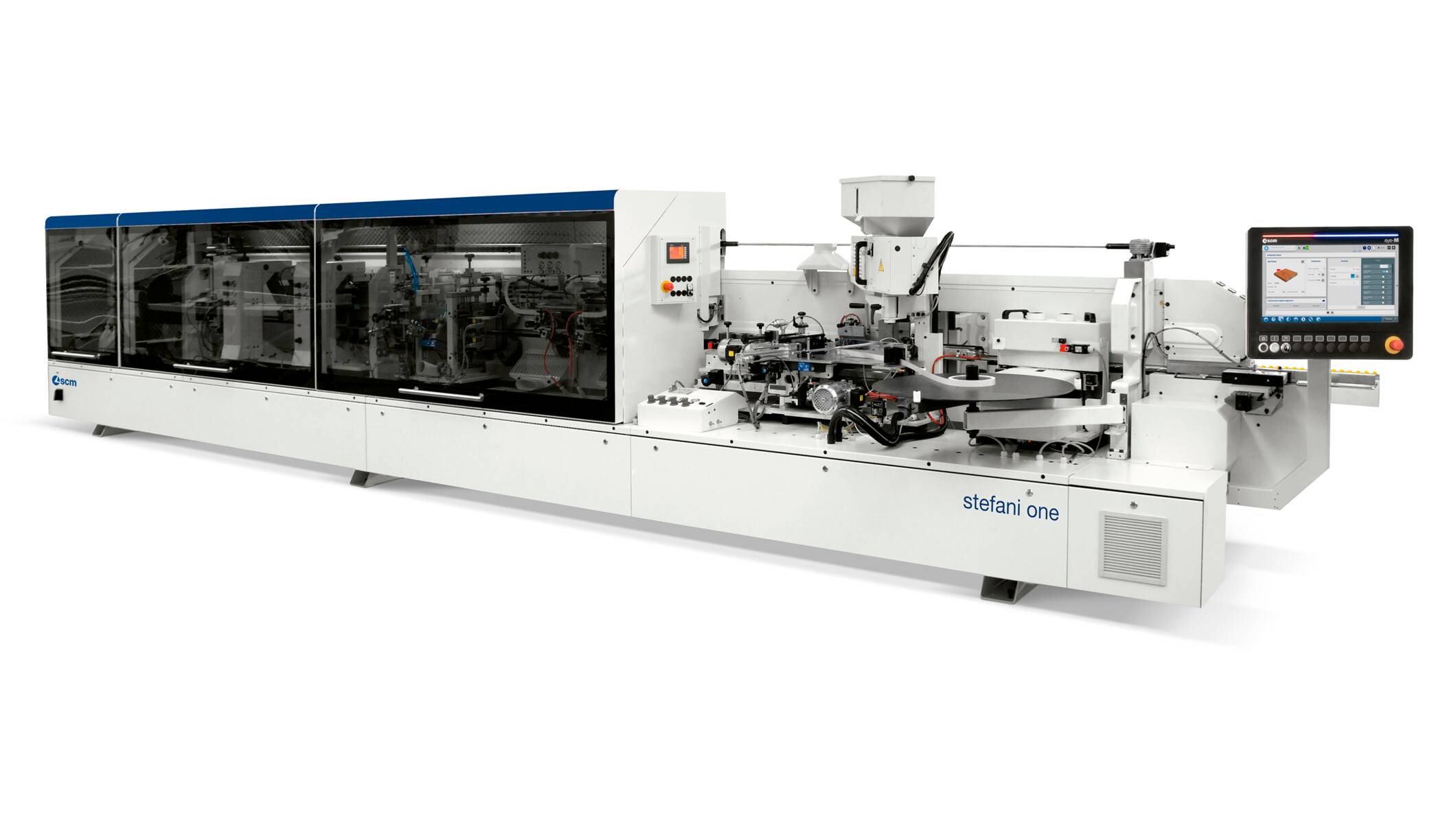

stefani one
(512) 931-1962
stefani one is the High-Performance single-sided edge bander designed for medium- and large-scale industries. It stands out for its high performance in terms of productivity, flexibility, and integration.
Ideal both in the stand-alone version and integrated within cells or edgebanding lines, it adapts perfectly to both intensive production of homogeneous batches and batch 1 production.
Advantages
-
FLEXIBILITY
The combination of flexibility and quality is the common thread.
The "Glue Switch" system allows for a just-in-time color and/or glue type change, thanks to the two glue pots installed in the machine.
The Airfusion H+ system ensures edge banding with a "zero glue line" effect. -
PRODUCTIVITY
The machine's sturdy structure and its non-deformable transport chain with bearings ensure fast and consistent movements in any working conditions. The result is a reliable solution capable of achieving the highest production standards. -
INTEGRABLE AND SCALABLE
The ideal solution for flexible production in edgebanding cells or lines when maximum reliability is required for intensive multi-shift daily operations.
It seamlessly integrates with panel handling systems, whether fully or semi-automated, depending on the specific production needs. -
FAST AND SIMPLE MANAGEMENT
The eye-M console and the Maestro active interface software, which has been unified across all SCM technologies and capable of interfacing with line supervision software, provide the operator with an efficient and intuitive working experience.
Technical data
| Max feed speed | m/min | 40 |
| Roll material thickness | mm | 0.3 - 3 |
| Strip material thickness (ready-cut/veneer strips) | mm | 0.4 - 1 |
| Max solid wood strip thickness | mm | 25 |
| Panel thickness | mm | 8 - 60 (8-80 opt) |
| Panel dimensions | according to the composition | |
| Max required overall dimensions | m | 15 |
| Pneumatic system | MPa | 6 |
| Gluing technology | EVA, PUR, EVA/EVA, EVA/PUR, PUR/PUR | |
| Zero glue line technology | AirFusion+ | |
| Possibility to integrate in a cell | Yes | |
| Machine versions | Left (right on request) | |
| Type of panel introduction | Manual (std) Semiautomatic (opt) Automatic (opt) |
